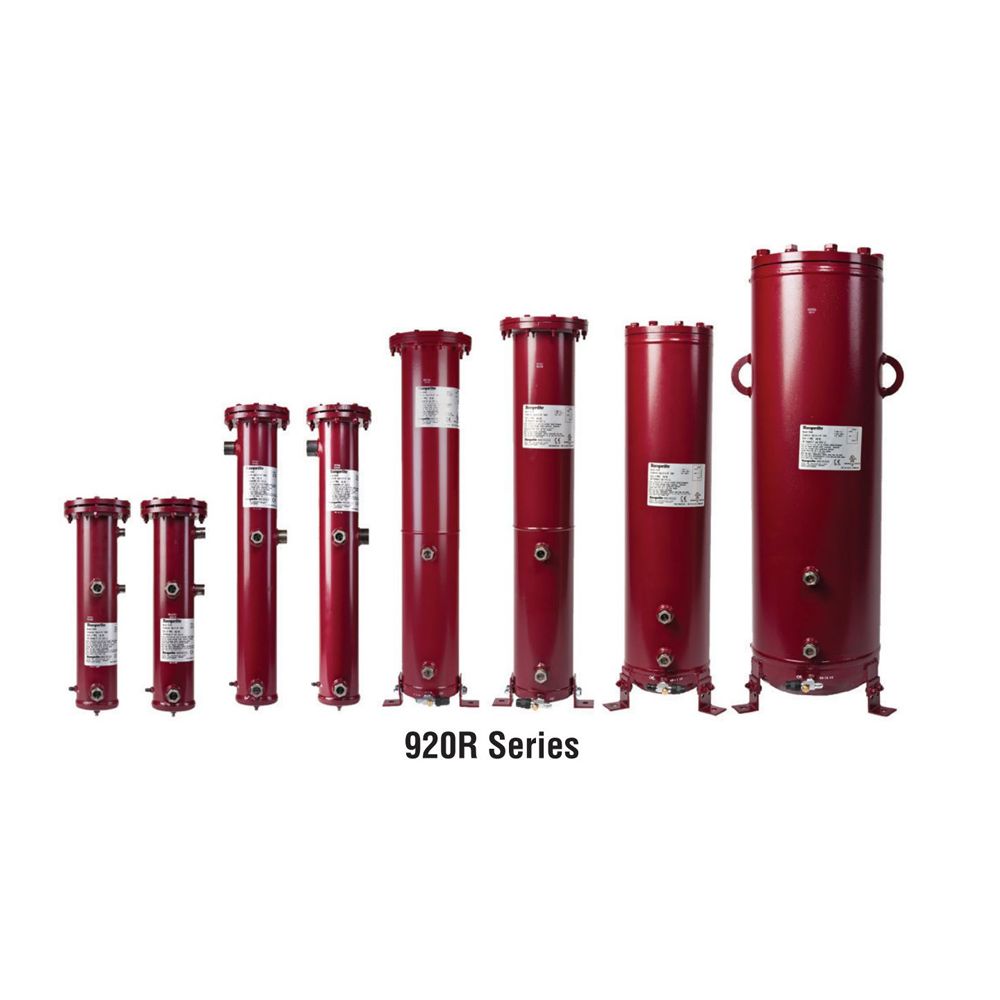

Temprite 920R series Oil Separator with Filter Kits

The 920R Series is compatible with ammonia (NH3) and subcritical CO2 and designed for 44.8 bar (650 PSI).

The 920R Series of coalescent oil separators are designed to make refrigeration systems clean and green by lowering energy costs and reducing carbon emissions.

• Higher efficiency means better heat transfer through the coils, translating into significant kW savings.

The 920R Series is not dependent on velocity for efficiency.

• Coalescent oil separators maintain the same level of effectiveness down to 20% of maximum flow.

Every 920 Separator performs with equal efficiency in all types of systems:

• in ultra-low temperature applications;
• even or uneven multiplex systems, dual suction systems, low, medium and A/C; and
• during refrigeration load shifting/matching.

Temprite’s 920R Series delivers the:

• Highest measured capacity of refrigeration.
• Lowest kilowatts required per unit of cooling (per ton).

920R Series separators are ammonia (NH3) compatible and designed for 650 PSI. Ammonia is a cleaning agent, meaning more dirt is removed from the system and deposited in the filter. 920R separators offer easy accessibility to the filter for changes. Other products require disassembling and re-welding the separator just to change the filter.

"R" is For Reservoir

An oil reservoir is built into each 920R Series coalescent oil separator. The built-in reservoir reduces piping, components and potential leaks and creates a stable, high-pressure oil system.

• Because the oil reservoir is built-in, 920R Series separators do not have a float.
