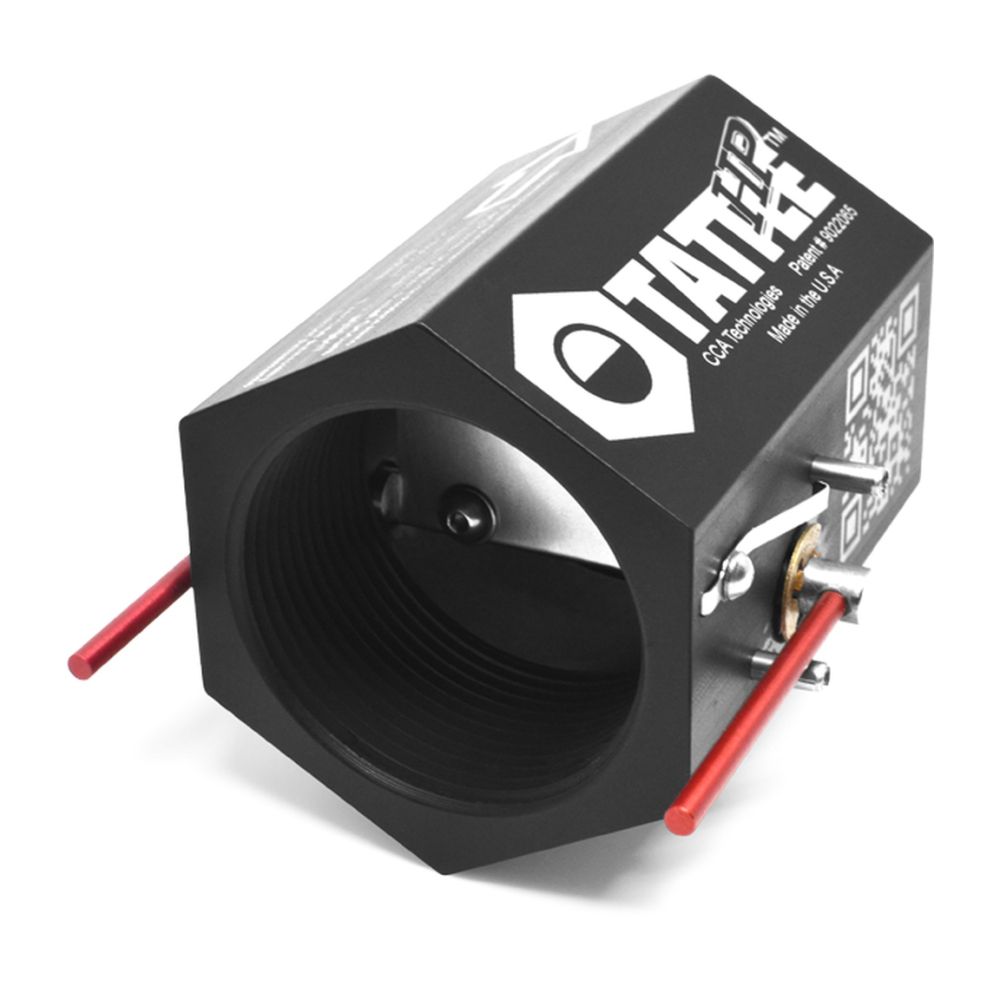

T-150HP Tattle HP 1 1/2"

This shaft passes through an aluminum housing and is sealed with O-rings. The paddle forms a gate through which gas must pass in order to go through the indicator. On the outside, a flag is connected to the shaft and, on rotation of the paddle, is raised to indicate a change in the gate position. This raised flag, visible from a distance, has "tattled" that gas has passed through the device and a release has occurred. By installing a Tattle™ downstream of all PRVs in the system, the system operator can visually inspect all PRVs without the use of specialized equipment. Because they can be seen from a distance, they can be installed in areas that are difficult to access, thus preventing an unnecessary and difficult in-depth inspection process. This ease of use saves time and effort and can prevent accidents and injuries associated with the inspection process.

• Hard-anodized aluminum body and indicator flags
• Stainless steel axle and paddle
• O-ring axle seals
• Design pressure: 300 PSIG / 20.6 bar relief valve
• Easy to install and maintain
• Low pressure drops
• Flag position viewable from a distance
• Locking spring to secure flag in place after a release
