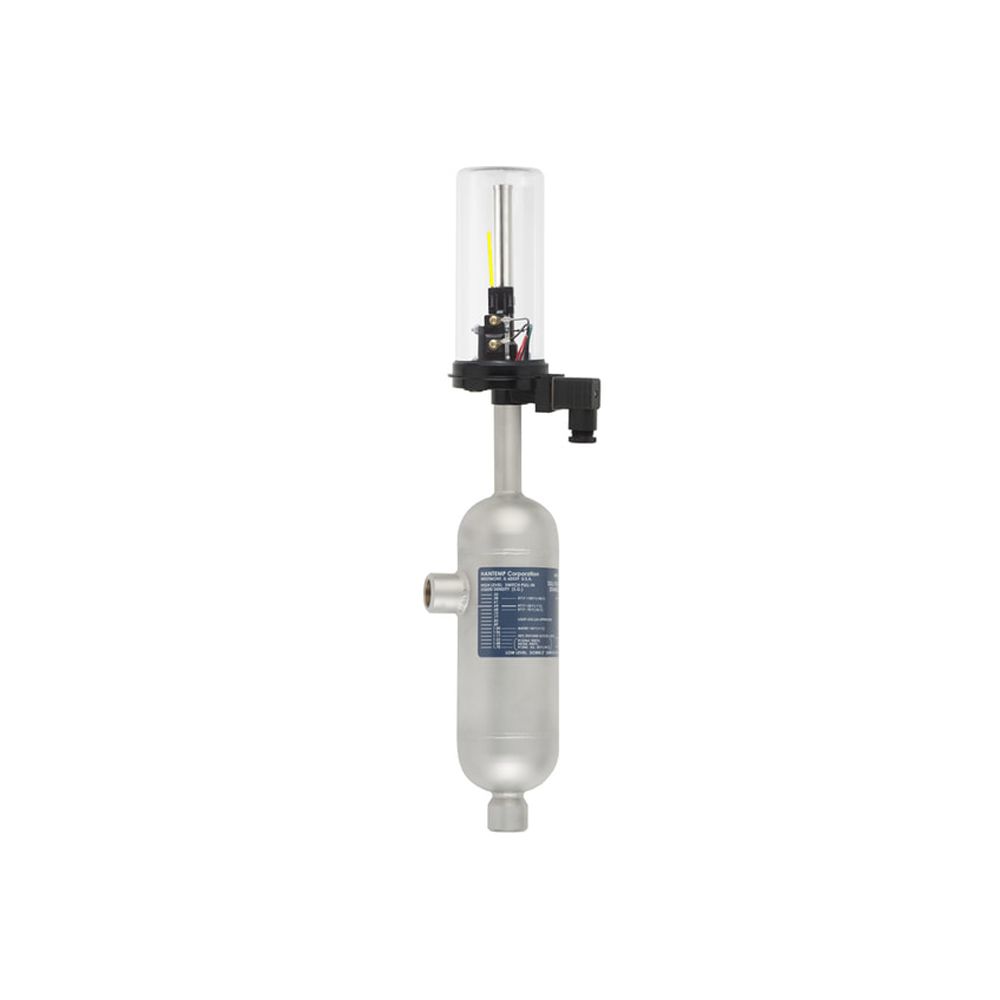

SSLL Hantemp Controls Stainless Steel Float Switch Assembly

Suitable replacement for Hansen and Parker RS Float Switches.

The HANTEMP “SEE-SWITCH”® Stainless Steel Float Switch is an improvement over conventional steel float switches. The stainless steel tank resists corrosion caused by condensation that occurs when cold liquid is being measured. In addition, the SSLL has lighter but stronger than steel float switch tanks. The LS switch housing features a neon yellow indicator wand that provides the operator a visual indication of the switch position. The switch arm Neodymium magnet is non ceramic solid metal.

APPLICATIONS The SSLL “SEE-SWITCH” ® Float Switch is used to open and close solenoid valves, electrical relays, pilot lights, and magnetic starters. It is also a device to actuate alarms and lights when an abnormally high or low liquid level occurs in the connected vessel.

• The SSLL is interchangeable with competitors' tanks
  • Parker LLSS
  • Hansen HLL
  • Hansen HLLS
  • Parker LL (old model)
  • Parker LLS (old model)
• Approved Refrigerants Include:
  • NH3, CO2, Glycols, Brines, Water, Light Oils, Hydraulic Fluids, and other liquids as approved.
• Half the weight of ordinary steel
• IP65 Electrical Enclosure
• DIN Connector & 1/2" Conduit
