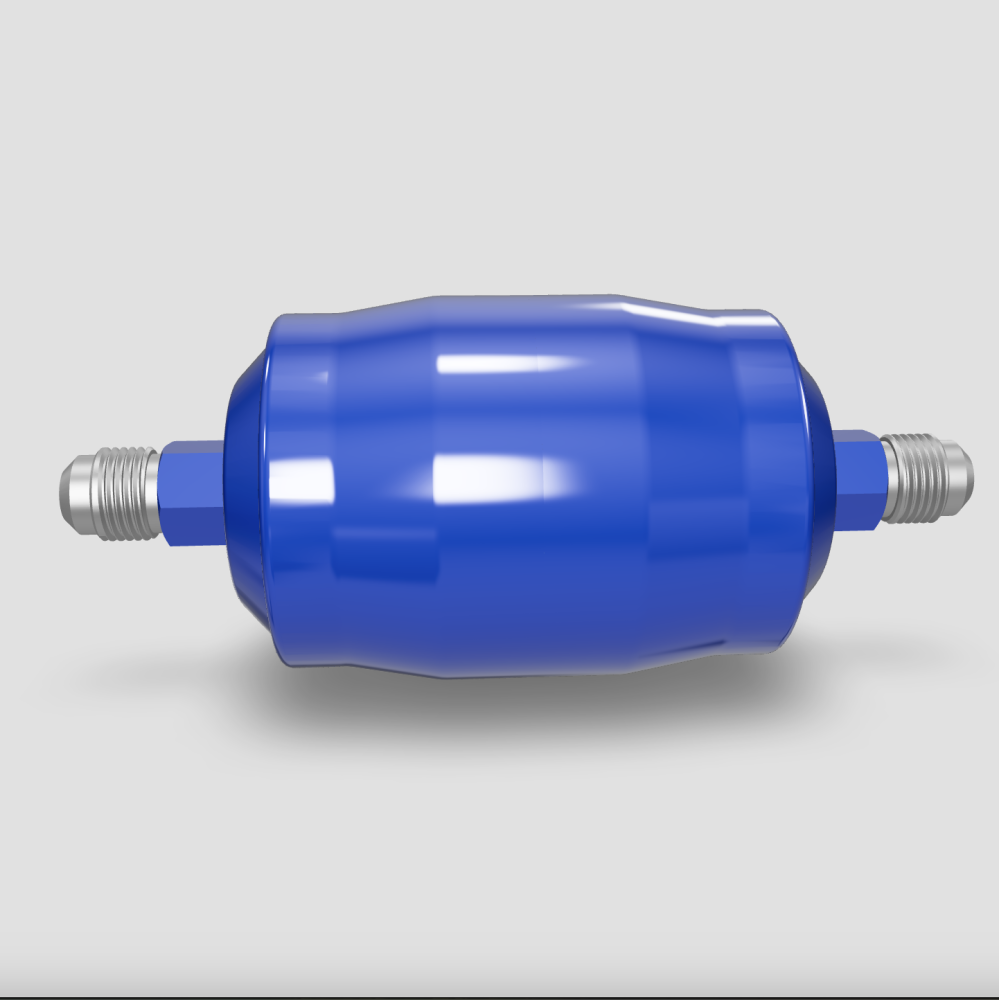

SDM-032 Henry Liquid Line Filter Drier, 1/4" Flare

Henry SDM-032 1/4" Flare Liquid Line Filter/Drier

Applications

Henry Technologies’ Liquid Line Filter Driers offer a high level of protection for refrigeration and air-conditioning systems. They are specifically designed to capture and retain moisture and solid particles from circulating throughout the system, which can create acid that causes damage to the compressor and other components piped within the circuit. Liquid line filter driers are suitable for HCFC, HFC and CO₂  refrigerants including R-410A, and their 2 associated oils

Main Features

• Solid copper ODS connections
• Plated Steel SAE flare connections
• Solid core construction of 100% Molecular Sieve desiccant
• Increased drying capacity over 80% Molecular Sieve and 20% Activated Alumina and cores
• Solid particle filtration down to 150 microns
• Powder coat finish suitable for UV rays and harsh environments
• 1000 hour salt spray tested to ASTM B117

Technical Specifications

• Maximum working pressure = 650 PSI (45 Bar)
• Allowable operating temperature = -40°F to +212°F (-40°C to +100°C)
