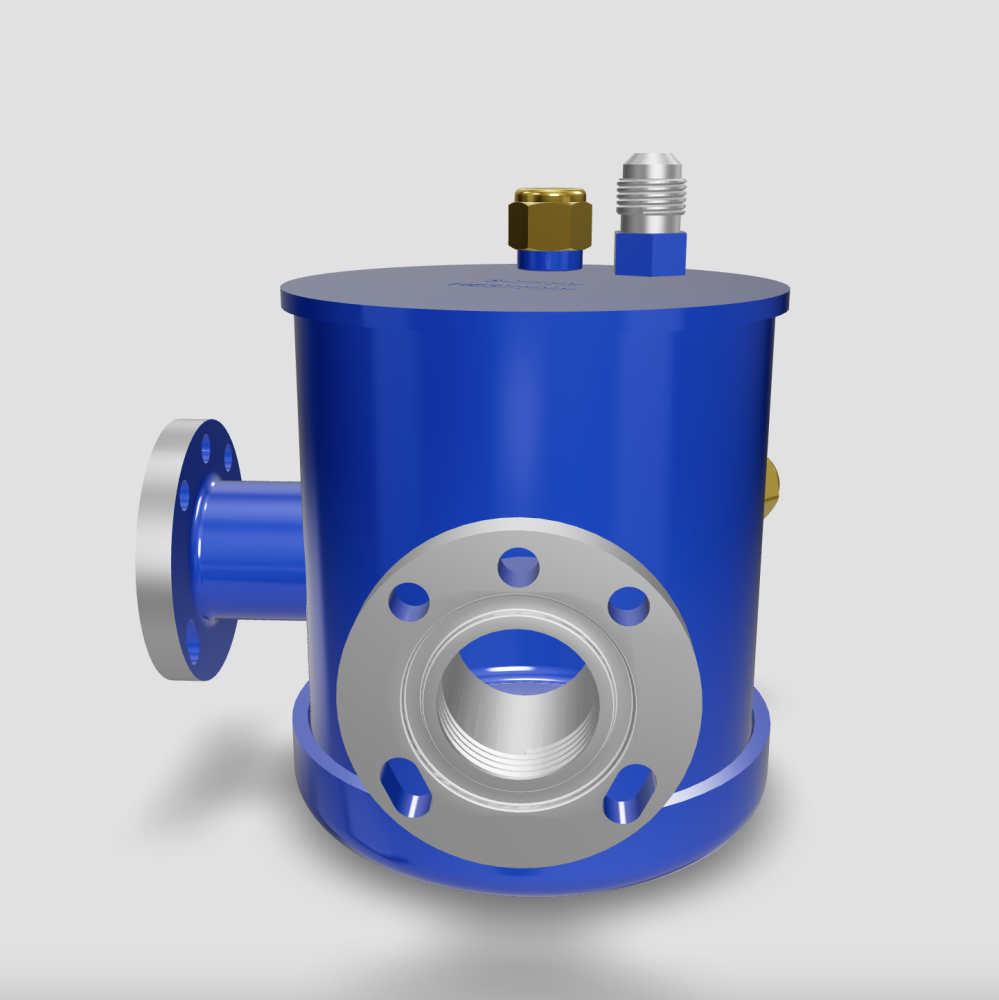

S-9130 Henry Conventional Adjustable Oil Level Regulator with Equalization, 4"

The function of a Mechanical Oil Level Regulator is to control the oil level in the compressor crankcase when used as part of a Low Pressure Oil Management System.

Applications

Oil Level Regulators are typically used as part of a Low Pressure Oil Management System on parallel compressor racks. Mechanical Oil Level Regulators are designed to bolt directly to the sight glass housing on the compressor crankcase. Henry Technologies offers fixed level and adjustable level Oil Level Regulators, as well as a wide variety of Adapters to allow use on most popular compressor models.

The S-9010 Mechanical Oil Level Regulator maintains a fixed oil level at 1/2 sight glass. The S-9010 maintains the oil level at any pressure differential between 5 and 30 PSI (0.35 to 2.0 Bar)

The S-9090 Mechanical Oil Level Regulator can be adjusted to maintain an oil level between 1/4 and 5/8 sight glass. The S-9090 maintains the oil level at any pressure differential between 5 and 90 PSI (0.35 and 6.2 Bar). Henry Technologies' exclusive design allows for oil level adjustment while the system is in operation eliminating the need of system shut down or disconnection of oil supply lines.

The S-9130 Mechanical Oil Level Regulator can be adjusted to maintain an oil level between 1/4 and 5/8 sight glass. The S-9130 maintains the oil level at any pressure differential between 5 and 90 PSI (0.35 and 6.2 Bar). Henry Technologies' exclusive design allows for oil level adjustment while the system is in operation eliminating the need of system shut down or disconnection of oil supply lines.

All Henry Technologies' Mechanical Oil Level Regulators are suitable for use with HFC and HCFC refrigerants and their associated oils, as well as other industrial fluids non-corrosive to steel, brass, copper, nylon and synthetic rubber.

Main Features

• 3 bolt-on 1-7/8” or universal flange compressor connections
• SAE flare oil and equalization connections
• Adjustable oil level on select models
• Pressure equalization ports for multi compressor applications
• Adapters available for most popular compress models
