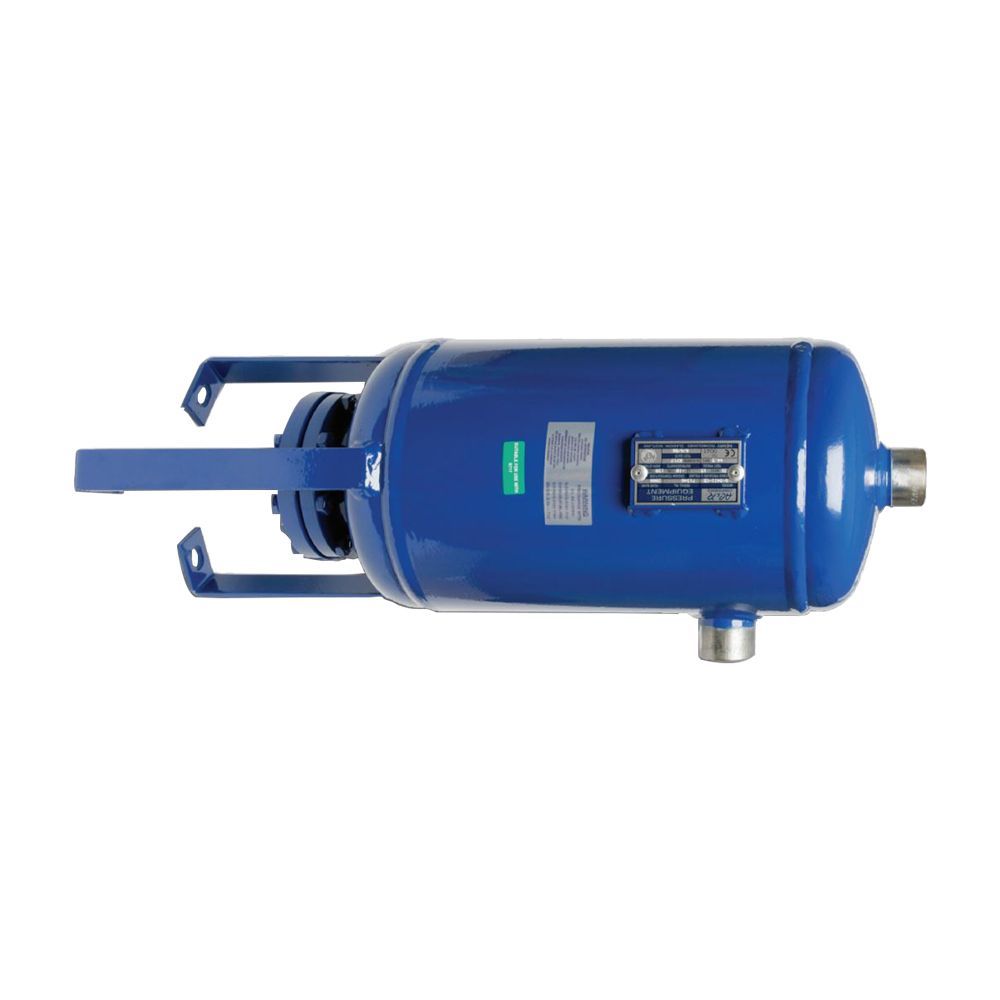

S-5203 Henry Helical Welded Oil Separator with Replaceable Float Assembly Welded Oil Separator Leg Brackets 2-5/8" ODS; 3/8" FL Return

The function of a Helical Oil Separator is to efficiently remove oil from the discharge gas and return it to the compressor, either directly or indirectly. This helps maintain the compressor crankcase oil level and raises the efficiency of the system by preventing excessive oil circulation.

The Helical oil separator features a centrifugal flow path that achieves approximately 99% efficiency of oil separation with a low pressure drop. Independent testing has found that only 0.006% oil by volume was being discharged into the system after leaving a Helical oil separator. Virtually oilfree refrigerant vapour exits the oil separator. A higher level of efficiency is to be expected compared to an Impingement type separator.

Applications Helical oil separators can be used in a wide variety of applications. These can include multi-compressor racks and remote condensing units. Helical oil separators are intended for Low Pressure Oil Management Systems. These products are designed for use with scroll and reciprocating type compressors. They are not recommended for screw or rotary vane compressors. The product range is designed for use with HCFC and HFC refrigerants, along with their associated oils.

Features
• Patented Henry Technologies Design
