SKU
NP12DA1
Brand:

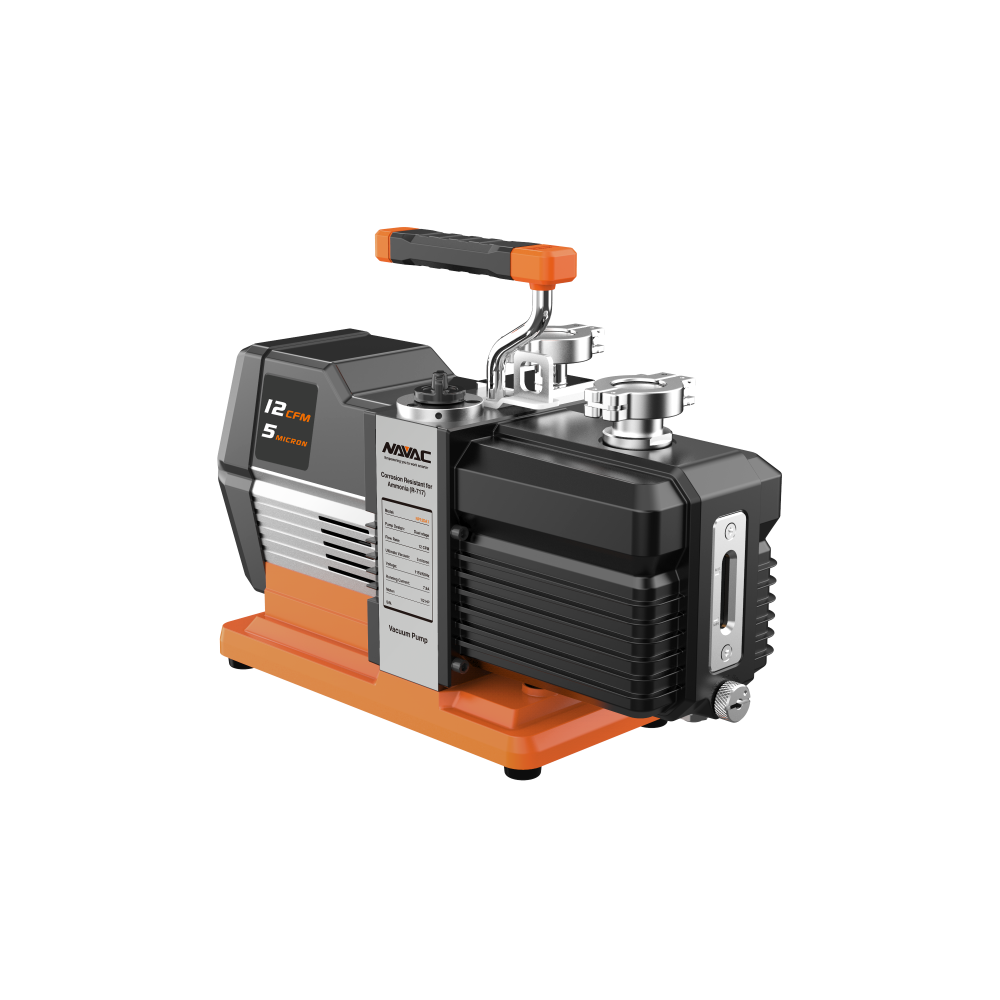

NP12DA1 NAVAC Ammonia Vacuum Pump, 12 CFM, 5 Microns, DC

NP12DA1 NAVAC ammonia vacuum pump. Industrial grade, corrosion-resistant for ammonia (R-717). Super high vacuum level down to 5 microns.

Web Price $1,507.84
Estimate shipping for this product
Details

With industrial-grade technology, NAVAC ammonia vacuum pump NP12DA1 solves the problems of long-time evacuation, inadequate vacuum level in the service for large commercial refrigeration or central AC systems. The special design with corrosion-resistant pump parts and stainless steel inlet port makes the pump suitable for ammonia (R-717). The dual-stage rotary vane pump and inverter motor lead to faster evacuation and a deeper vacuum. Integrate pump structure and built-in oil back-flow prevention assure superior performance and reliability.

Features:

  • Corrosion Resistant for Ammonia (R-717)
  • Brushless DC Technology
  • Industrial Grade Design
  • Ignition-Proof Design
  • Oil Drain Valve
  • Sight Glass

Specifications:

  • Power Supply: 115V / 60Hz
  • Flow Rate: 12 CFM
  • Ultimate Vacuum: 5 micron
  • Pump Design: Dual stage
  • Motor Power: 1/2 HP
  • Inlet Port: KF25 in.
  • Oil Capacity: 28 oz.
  • Dimensions: 16.3 x 6 x 12.1 in.
  • Weight: 32 lbs
  • Accessory: KF25 (for indoor applications)





More Information
More Information
Weight 37.000000
Condition New
Brand NAVAC
CFM 12 CFM
Power 115V/60Hz
Ultimate Vacuum 5 micron
Pump Design Dual Stage
Motor Power 1/2 HP
Inlet KF25 in
Oil Capacity 28 oz
Dimensions 16.3 x 6 x 12.1"
Ammonia Compatible Yes
GTIN/UPC 811245031472
Warranty 1 Year
Length 16.3
Width 6
Height 12.1
Resources
2021 NAVAC Brochure
(Size: 5.8 MB)
NP12DA1 User Manual
(Size: 4.2 MB)
NP12DM User Manual
(Size: 4.6 MB)
NAVAC Warranty
(Size: 156.2 KB)
