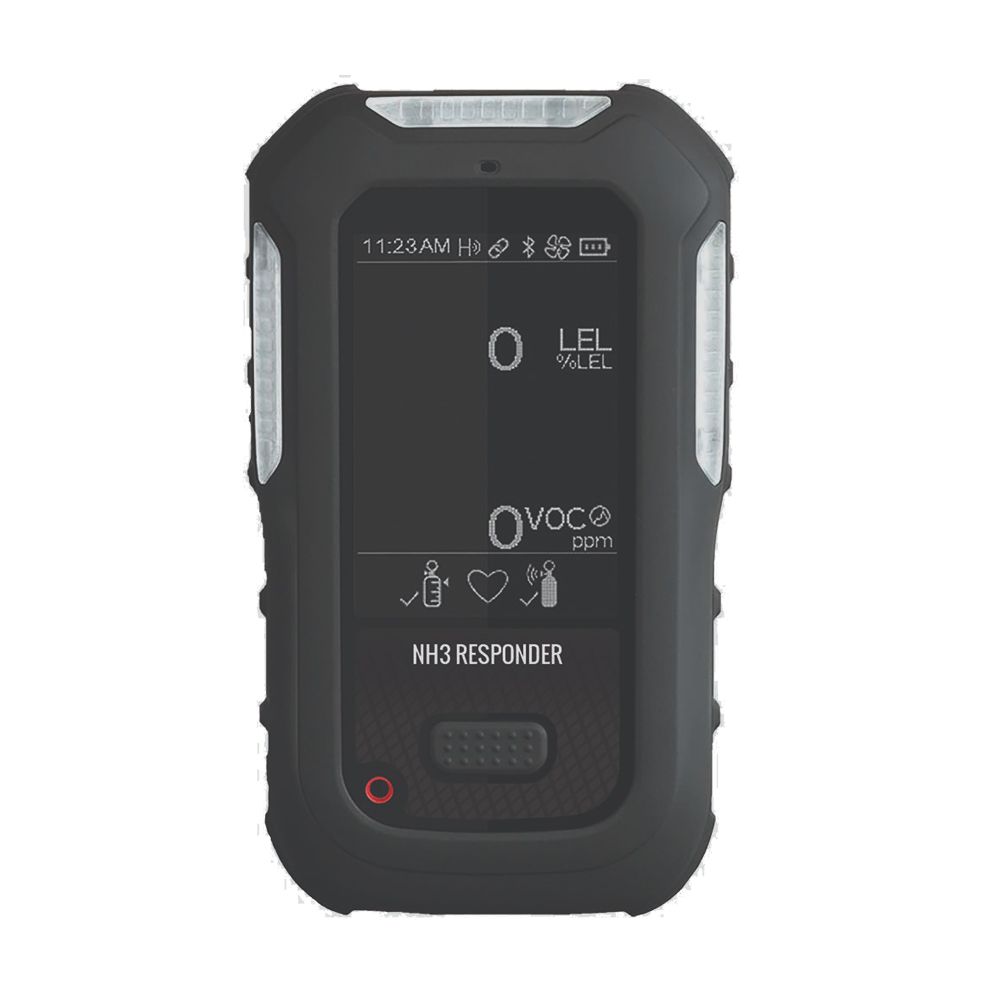

NH3-RESPONDER-ULTRA Calibration Technologies NH3 Responder Ultra

With full-range detection from 0 ppm to 100% LEL, the NH3 Responder Ultra is the only portable ammonia detector you’ll ever need.

The NH3 Responder Ultra utilizes two sensor technologies to cover the ranges of interest in an ammonia response operation. The low-level sensor PID sensor detects ammonia concentration readings within the range of 0-1,000 ppm for the 35 ppm PEL and 300 ppm IDLH decision making points.
At concentrations over 4,500 ppm, the PID sensor will display “OL” and the LEL sensor takes over, giving you 3-100% LEL readings for the explosive-levels decision making range. Most response trainers recommend leaving the area at 10% LEL.

For added safety, the onboard oxygen sensor will alarm in the event of low O2 levels (measures in range of 0-25% O2 (vol)).

Additionally, the PID sensor has an extremely fast response time and is useful for finding small ammonia leaks. Think of it as an “electronic sulfur stick”. Refrigeration technicians will find this a useful tool for locating difficult to-find leaks by “sniffing” around valve packing, sight glasses, shaft seals, etc.

Features:

• Detection range from 0-100% LEL of Ammonia (PID: 0-1,000 PPM NH3) (LEL: 4,500 to 150,000 PPM NH3))
• Includes Oxygen sensor with range of 0-25% O2 (vol).
• Smaller and lighter than competitive instruments.
• Water-resistant design in an integral concussion-proof enclosure.
• Large LCD allows for easy-to-read monitoring.
• Integral motorized pump for remote sampling and fast response.
• Rechargeable lithium polymer battery (14 hours runtime @ -4F)
• 95 dB alarm tone, bright LED alarm bars, & internal vibrating alarm for noisy areas.
• Auto backlight: activates in low light & when in alarm.
• Four alarm levels: instantaneous Low Alarm, High Alarm, TWA and STEL.
• Records TWA, STEL, and max exposures to gas & displays readings on command.
• Datalogger with programmable sampling intervals.
• Available options for additional H2S and CO sensors (call for price and availability).

Includes:

• carrying case,
• rechargeable battery and charger,
• sampling wand and hose (3ft), and
• stainless steel alligator belt clip.

Applications:

• Compressor Rooms
• Tank Rooms
• Vent Lines
• Air Monitoring
• Sea Vessels
• Food Processing
• Chemical Plants
• Refrigeration Systems
• Emergency Response
