MS4120F1204 Honeywell Damper Actuator

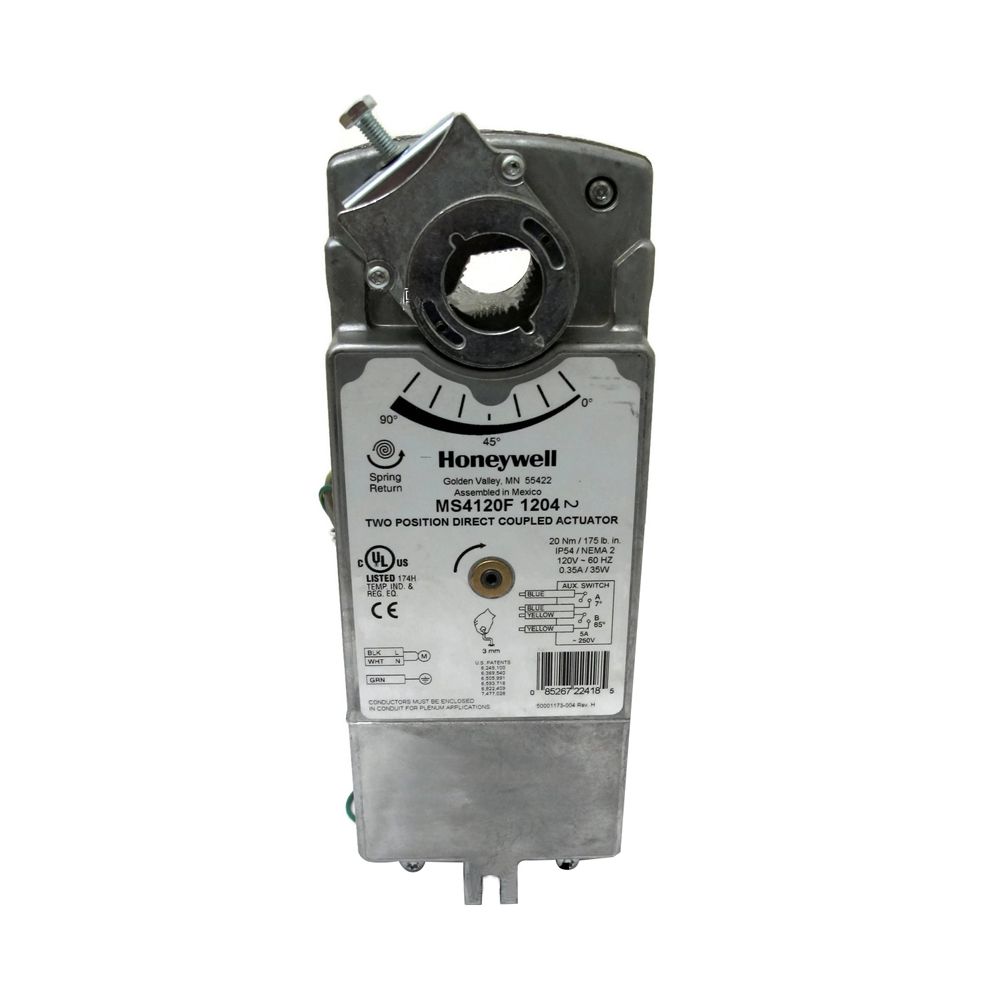

Honeywell Damper Actuator MS4120F1204.

The Honeywell Fast-Acting, Two-Position Actuators are line volt (120V), 80 lb-in., spring return direct coupled actuators (DCA) for Fire and Smoke dampers (on/off control). The actuator accepts an on/off signal from a single-pole, single-throw (SPST) controller. Reversible mounting allows actuator to be used for either clockwise (cw) or counterclockwise (ccw) spring rotation.

Features:

• 80 lb-in. (5.9 N•m) minimum driving torque at 350 F (176 C)
• Reversible mounting facilitates use in either clockwise (cw) or counterclockwise (ccw) spring rotation
• Integral spring return ensures level of return torque
• Fifteen-second spring return timing
• No special cycling required during long-term holding
• No audible noise during holding
• Patent pending design eliminates need for limit switches to reduce power consumption
• Models available for 24, 120, and 230 Vac
• Ninety-five degree angle of rotation
• Actuator holds rated torque at reduced power level
• Die-cast aluminum housing
• Housing design allows flush mounting to damper
• Designed to operate reliably in smoke control systems requiring Underwriter’s Laboratories Inc. UL555S ratings up to 350 F
• Models available with SPST position-indicating switches (7 degree, 85 degree stroke)
