SKU
8-BS-2

Miro 8-Base Strut-2 Strut Rooftop Pipe Support - 2.5" ID/3" OD Pipes

8" wide and 2" above roof.
List Price $183.72 List Price $183.72 As low as $18.24
Details

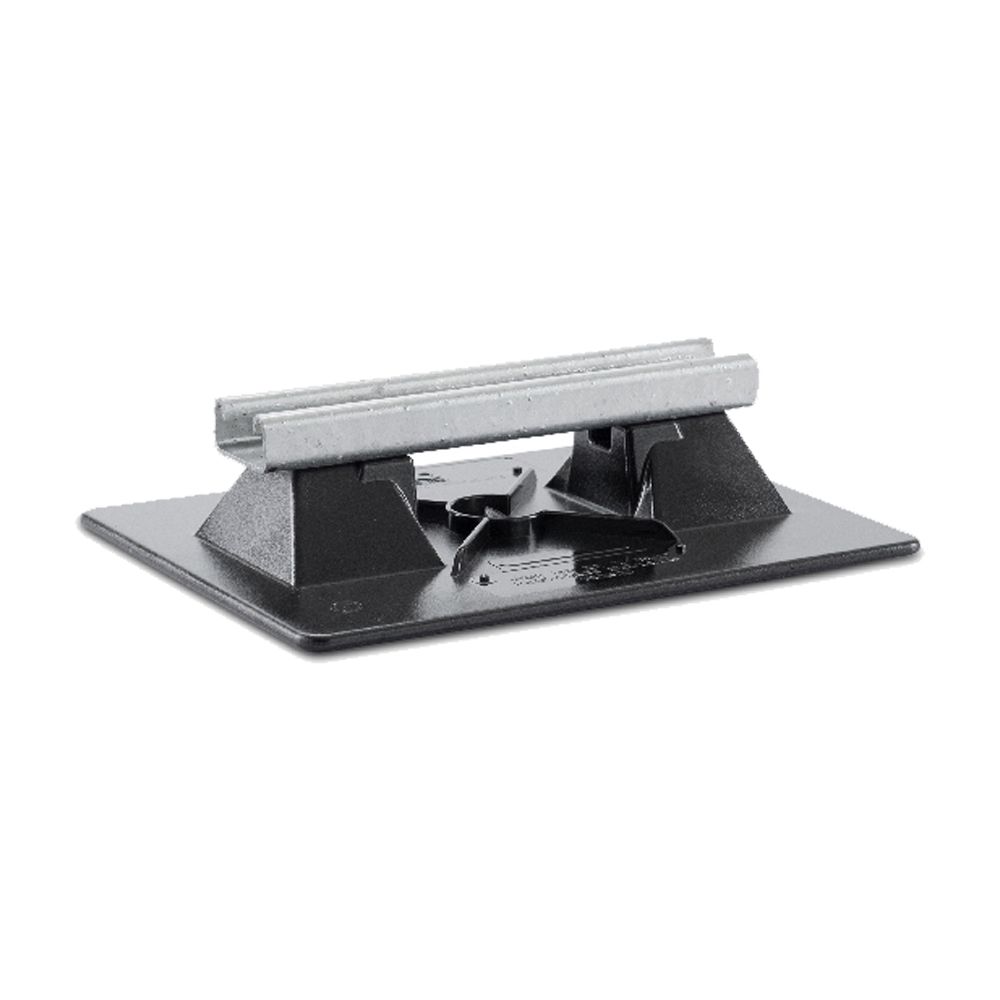

A pipe support with "strut" used to support roof-mounted electrical conduit, solar piping, gas pipes, and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a strut system which is made of hot-dip galvanized steel. The pipe support base is made of polycarbonate resin, and all other metal parts are made of hot-dip galvanized or stainless steel. Pipestand will accommodate up to 2 1/2" pipe (inside diameter) or up to 3" (outside diameter) pipes.

More Information
More Information
Weight 22.000000
Condition New
Manufacturer MIRO Industries
Base Material Polycarbonate
Size The deck base is 7.5" by 10" and the strut is 1 5/8" by 13/16" strut and 8" long.
Maximum Pipe Size 2.5" inside diameter and 3" outside diameter.
Maximum Pipe Clearance Maximum pipe clearance of 2.5".
Maximum Load Weight Maximum load weight may not exceed 172 lbs. per pipestand.
Spacing Manufacturer's recommended spacing is not to exceed 10 foot centers depending upon the load
Resources
Miro-Catalog
(Size: 6.7 MB)
