Supports 5" pipe up to 12" above roof.
List Price
$397.08
List Price
$397.08
As low as
$73.00
Details

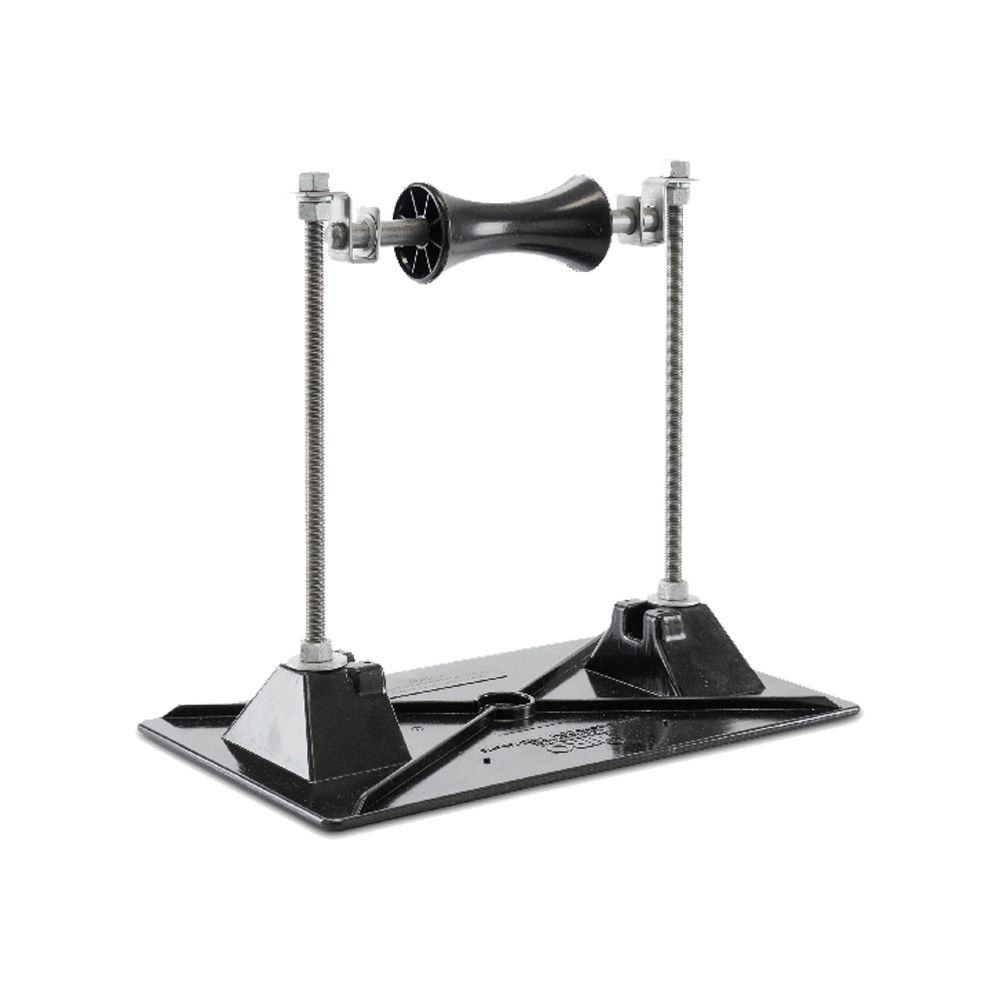

A "roller-bearing" pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a self-lubricating roller which is made of a stainless steel rod and a sturdy polycarbonate resin roller. The pipe support base is made of polycarbonate plastic and all metal parts are made of stainless steel. Pipestand will accommodate up to 6" outside diameter pipes.
More Information
| Weight | 4.200000 |
|---|---|
| Condition | New |
| Manufacturer | MIRO Industries |
| Base Material | Polycarbonate |
| Size | The deck base is 9" by 15.25" and the maximum cradle width is 9", but is designed to hold a maximum of 6" outer diameter pipe. |
| Maximum Pipe Size | 6" outside diameter. |
| Maximum Pipe Clearance | Minimum clearance height of 4" and maximum clearance height of 12". |
| Maximum Load Weight | Maximum load weight may not exceed 335 lbs. per pipestand. |
| Spacing | Manufacturer's recommended spacing is not to exceed 10 foot centers depending upon the load. |
