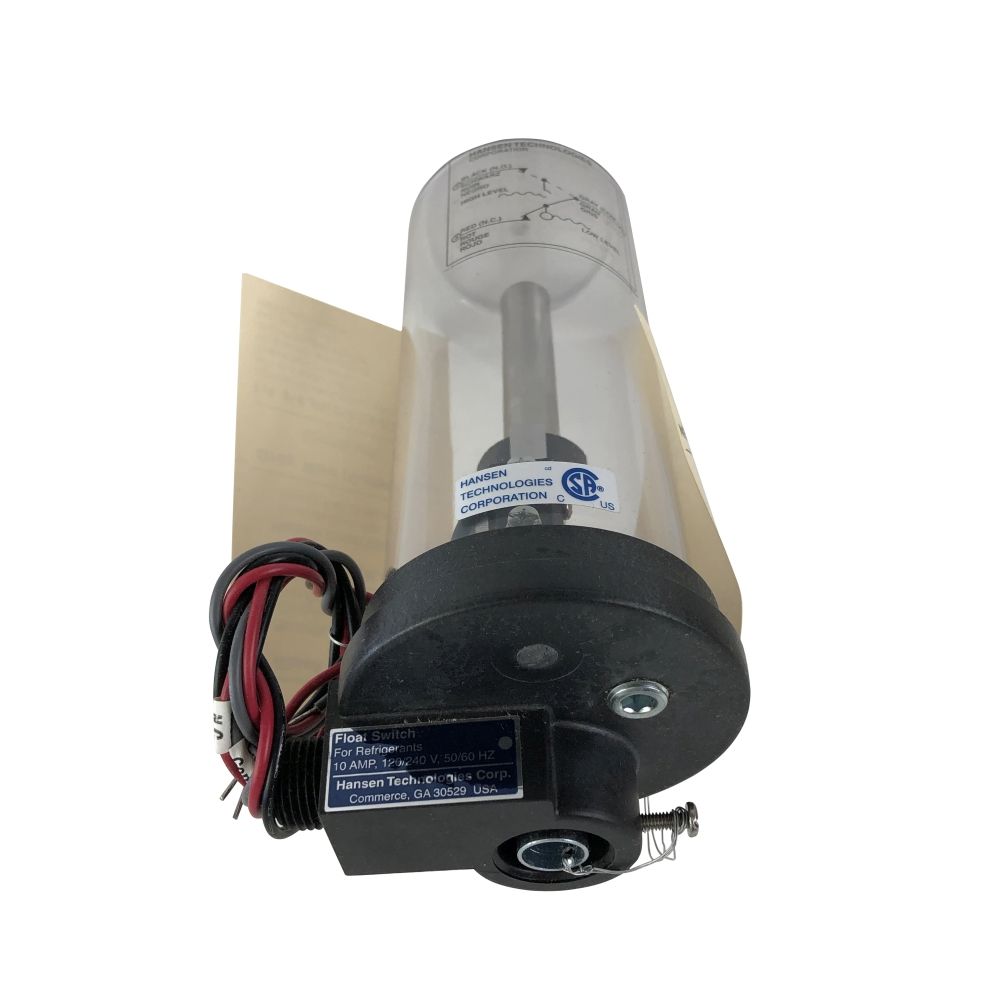

HLLSW Hansen Refrigerant Float Switch

These Hansen refrigerant liquid level float switches (HLL Series) are used to electrically indicate or control a liquid level by opening or closing a SPDT switch. Their simple, reliable design provides long life performance for almost any application. These refrigerant liquid level float switches are typically installed on a vessel’s liquid level column. They can control liquid level by controlling a liquid fill solenoid valve. Often, they are used to provide high level cutout or alarm. In addition, they can be used to turn off a recirculating liquid pump if a low level occurs. Other applications include control of liquid level via a liquid exit solenoid valve, level indication via a pilot light, and transfer drum operation.

This switch assembly is sealed in a clear housing to allow visual confirmation of switch action but protection from tampering. In addition, the switch is surrounded by an inert gas that provides an environment which inhibits corrosion.

Key Features:

• Clear Housing Hermetically sealed
• Optional Heater
• 1/2" NPSM Conduit Connection (Optional DIN Plug)
• Retaining Srew
• Upper Spring
• 3/4" FPT/1" Buttweld Connection HLLS, HLLSC only
• 3/4" FPT/1" Buttweld Connection
• High Pressure Tested Float Ball
• Welded Tank and Neck assembly eliminates Gasket Leak Potential
• Switch Assembly Position Rotates 360°
• Optional Metal Cover
• Heavy Duty 10Amp SPDT Switch
• Level Arm
• Magnet
