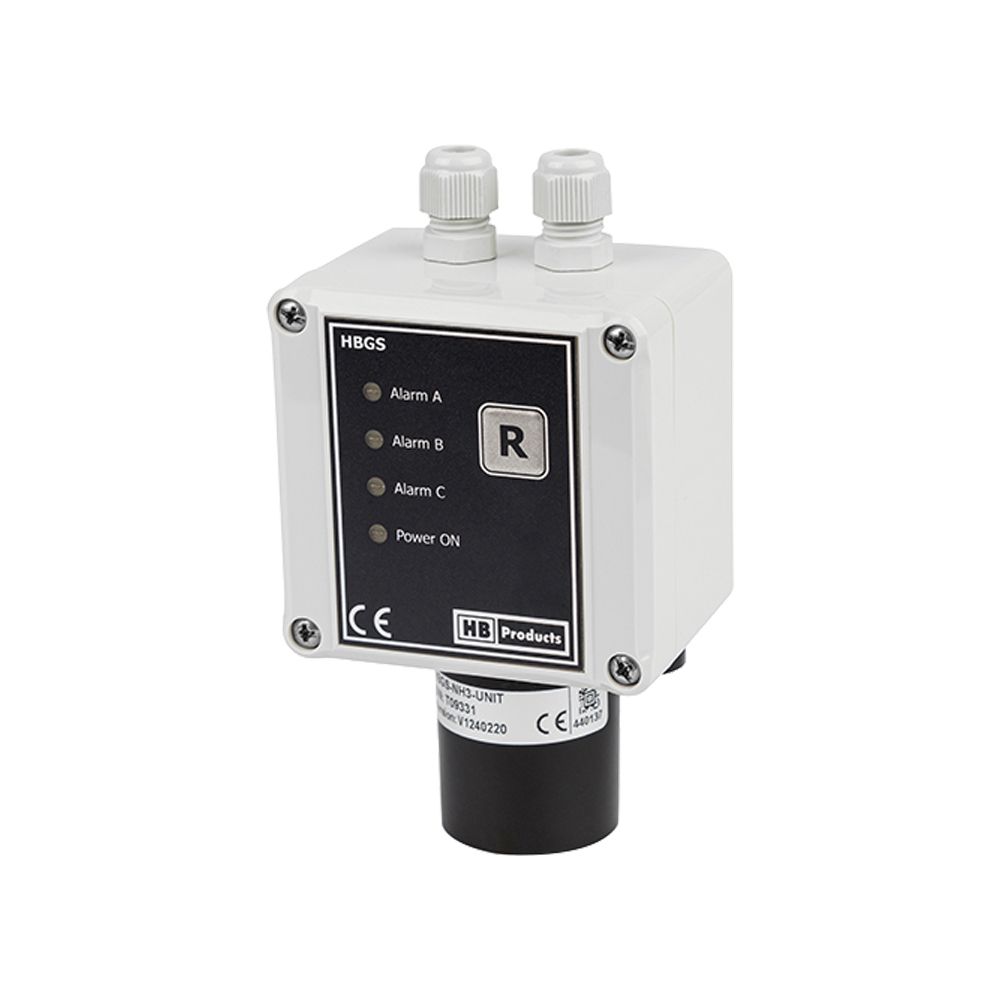

HBGS-CO2 HB Products Gas Leak Sensor for CO2 0-10000 ppm

HBGS fulfils the requirements for gas leakage measurement in accordance with F-GAS regulation EU/517/2014. HBGS detects CO2 (R744) in a range of 0-10000 ppm. It is an independent unit that must be supplied with 24 V DC. It has 3 built-in digital alarm output and 1 analog 4-20 mA output. The sensor can be set up using a PC with the HB Confiuration Tool.

The CO 2 sensor version has a lifetime of more than 5 years. Both sensor elements can easily be replaced and does not require a new calibration. On the front, you can fid 4 integrated LEDs for display of the supply (green) as well as 3 alarm levels (red, orange, and yellow). Similarly, there is a reset button in case an alarm is triggered. The sensor is factory calibrated. Verifiation during the lifetime can be done with high gas concentrations. The sensor is optimized for use in areas where cleaning solvents are used. Built-in heating element ensures low ambient temperatures down to -30°C. The sensor comes with a calibration certifiate as well as with preconfiured alarm limits.
