SKU
HS6/1
Brand:

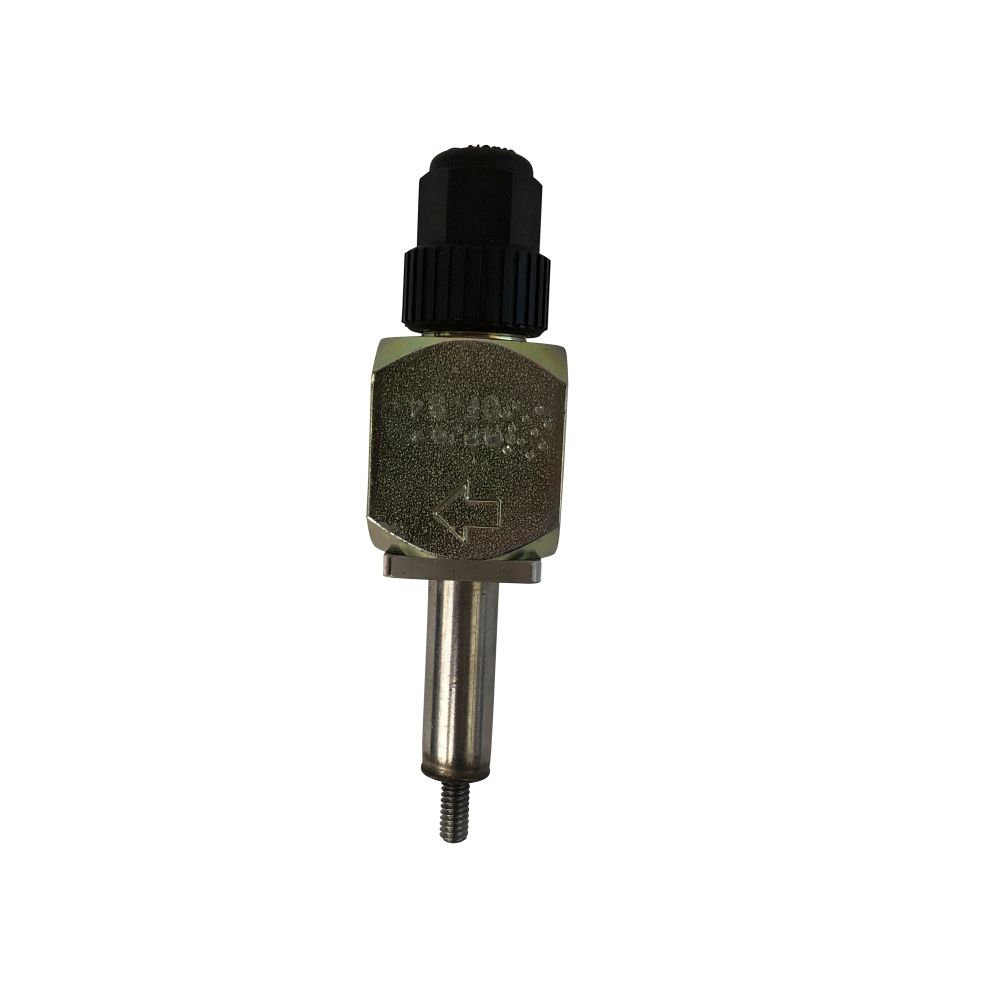

Hansen HS6/1, 5/32" (4mm) Solenoid Valve for Refrigerant

This flanged, industrial refrigeration duty solenoid valve is very simple and compact but rugged in construction. Body is plated steel alloy with a direct lifting stainless steel plunger that contains a teflon seat that closes on a stainless steel orifice. When electrically energized, seat opens wide; when de-energized, it closes to stop flow in the arrow direction on the valve body.
List Price $315.00 List Price $315.00 Web Price $197.44
Estimate shipping for this product
Details
This flanged, industrial refrigeration duty solenoid valve is very simple and compact but rugged in construction. Body is plated steel alloy with a direct lifting stainless steel plunger that contains a teflon seat that closes on a stainless steel orifice. When electrically energized, seat opens wide; when de-energized, it closes to stop flow in the arrow direction on the valve body. This small, direct lifting valve is used primarily as a pilot for various larger gas-powered or liquid powered main valves, as a remote pilot for back pressure regulators or other devices, or as a liquid stop valve for expansion valves, float valves, or as a general purpose pilot line for ammonia, R22, R134a, CO2 and other approved refrigerants or oil.
More Information
More Information
Weight 3.000000
Condition New
Manufacturer Hansen
Port Size 5/32"
Body Steel, plated
Seat Teflon
Operating Temperature -60°F to +240°F (-50° to+115°C)
Safe Working Pressure 400 psig (27 bar), 600 psig (40 bar) for CO2
Width 2.0000
Height 2.0000
Depth 6.0000
