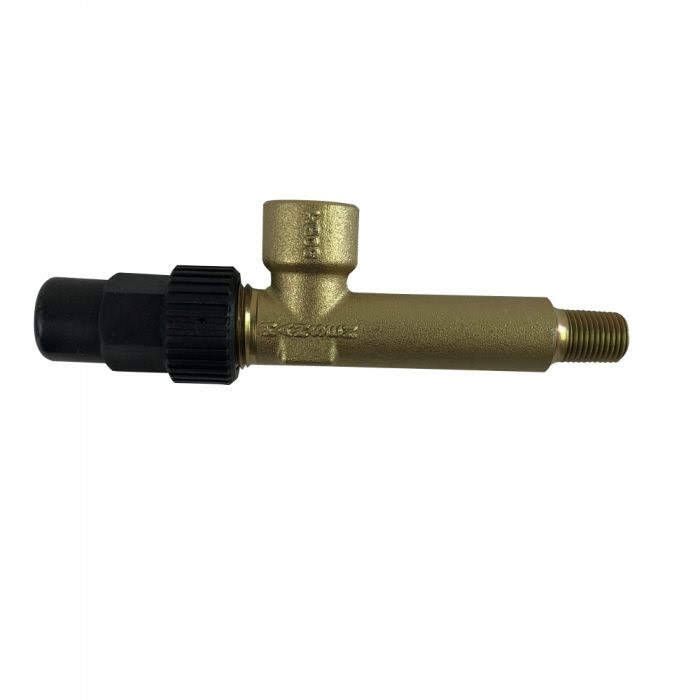

Hansen HGV1, 1/4 LG Neck Gauge Valve, Angle MPTxFPT, Stainless Steel Stem, w/SC

Hansen's specially designed Gauge, Purge, and Transducer Valves feature tough, forged steel bodies, compact size, and polished stainless steel stems. Their patented O-ring plus packing dual-seal design and polished stainless steel stems provide leak-free packing. The safety stem design prevents removal of the stem from body or stem "blowout". The long neck version provides extra clearance for gauge-turning rotation. Often used to isolate pressure gauges on regulators, these valves can also be used to pump out, purge, and meter refrigerant liquid or gas.

Key Features

• Seal Cap
• Optional Bar Handle
• Polished Stainless Steel Stem
• Non-Removable
• O-ring Plus Packing Stem Seal
• Forged Steel Body
• Long Neck Available

Additional Features

• Globe and angle valve available
• Heavy-duty forged steel body
• Unique Transduce / Gauge valve
• Interchangeable seal caps and bar handles

Material Specifications

• Body: Forged steel, ASTM A105
• Stem: Stainless steel, polished, ¼" square flats
• Stem Packing: Graphite composite plus neoprene O-ring
• Packing Nut: Steel
• Seal Cap: Glass-filled polymer
• Seal Cap O-ring: Neoprene
• Bar Handle: Steel
• Safe Working Pressure: 400 psig (28 bar) SWP
• 600 psig (41 bar) available upon request
• Operating Temperature: -60°F to 240°F (-50°C to +115°C)
