Hansen HCK2/6, 2-1/2 (65MM)Gas POW.Suction Stop Valve w/1/2 Socket Weld Disc STR
Hansen HCK2/6, 2-1/2 (65MM)Gas POW.Suction Stop Valve w/1/2 Socket Weld Disc STR
List Price
$1,876.00
List Price
$1,876.00
Web Price
$1,005.90
Details

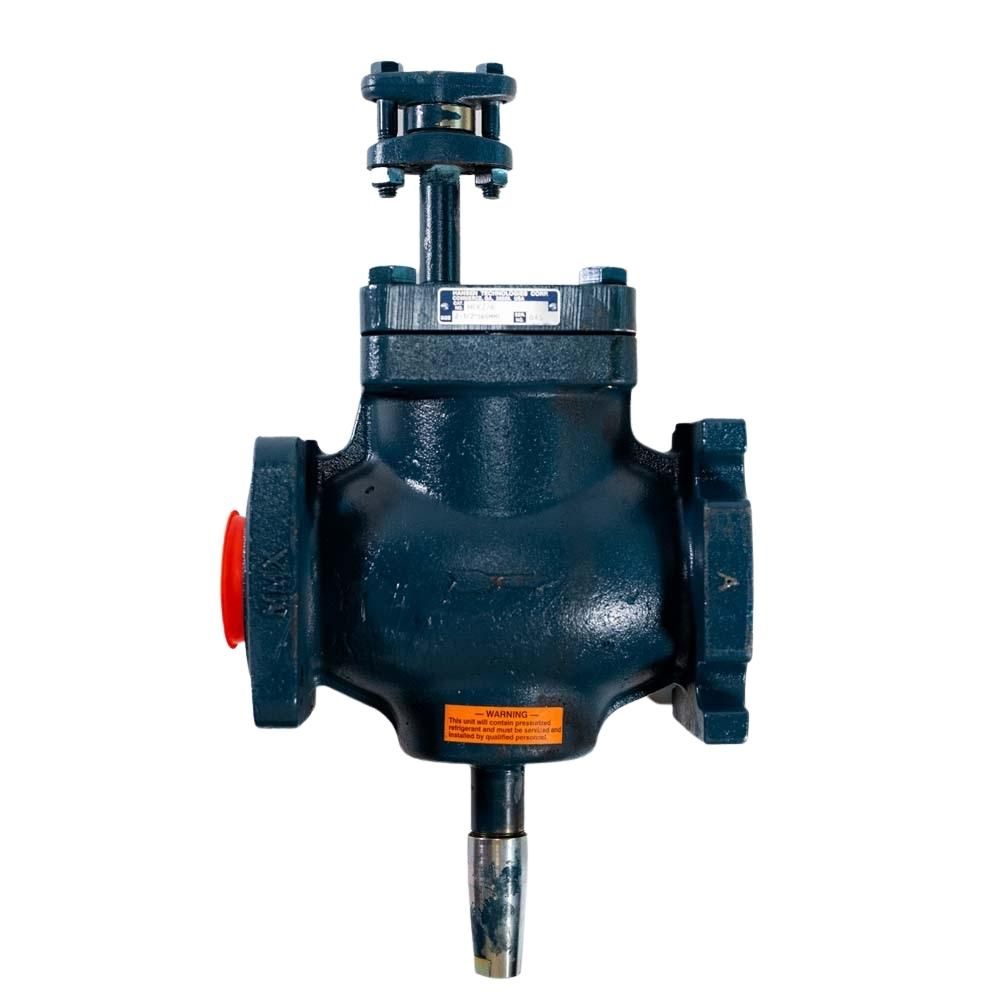

These heavy-duty, flanged, gas-powered suction stop valves are designed to control the flow of refrigerant in large industrial and commercial applications. They remain normally open via a spring and require no pressure drop to operate. Valves are normally installed on their side for better conveyance of liquid overfeed or oil and to avoid trapping. A single pilot solenoid valve is required to control a higher pressure refrigerant gas which closes these valves during defrosting.
More Information
| Weight | 61.000000 |
|---|---|
| Condition | New |
| Brand | Hansen |
| Port Size | 2-1/2" |
| Body | Ductile iron, ASTM A536 |
| Piston | Ductile iron, ASTM A536 |
| Seal Cap | Steel, zinc chromate plated |
| Stem | Plated steel |
| Top Cover | Steel, ASTM A36 |
| Safe Working Pressure | 400 psig (27 bar), 600 psig (40 bar) for CO2 |
| Spring | Stainless steel |
| Operating Temperature | -60°F to +240°F (-50° to+115°C) |
| Width | 10 |
| Height | 10 |
| Length | 20 |
