Hansen H7771, 1/4 Gauge Valve Angle, MPT x FPT Stainless Steel Stem, SC
List Price
$118.00
List Price
$118.00
Web Price
$72.62
Details

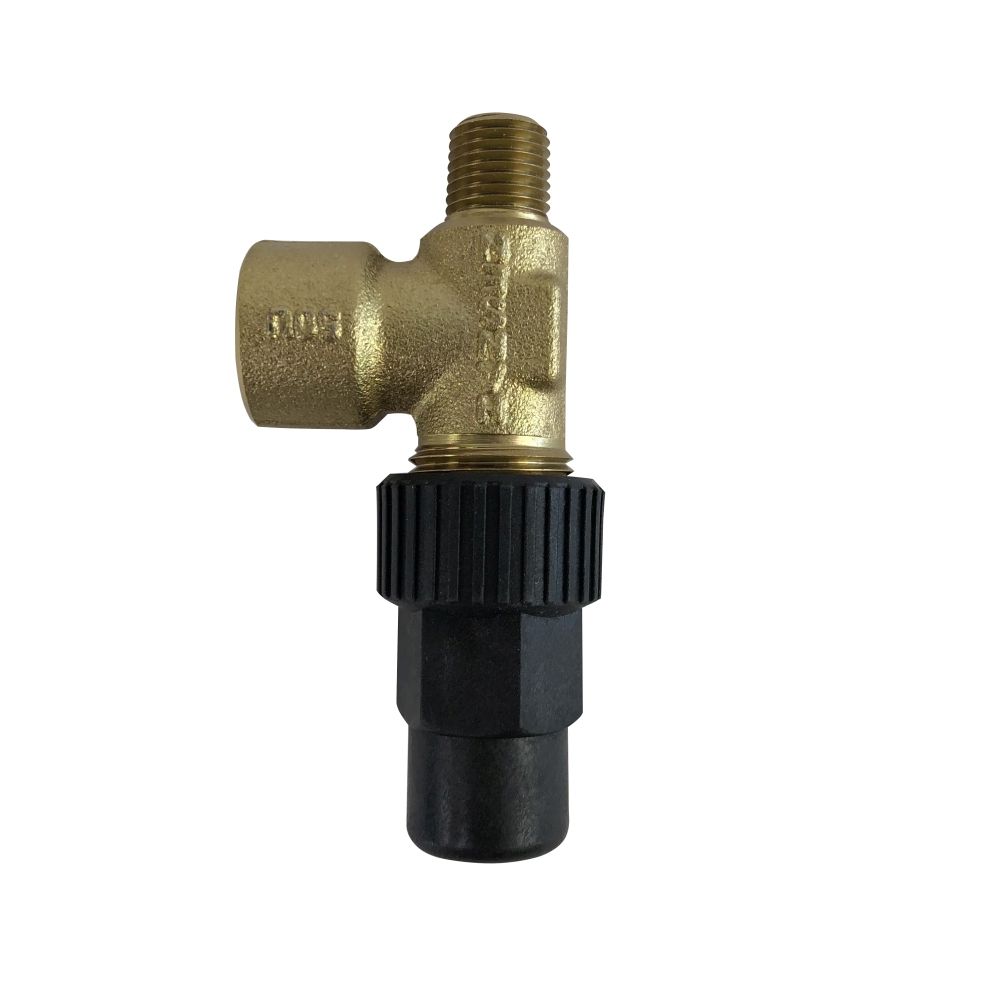

H7771 Hansen 1/4" Gauge Valve
These specially designed refrigerant gauges, purge, and transducer valves feature tough, forged steel bodies, compact size, and polished stainless steel stems. The patented O-ring plus packing dual seal design and polished stainless steel stem virtually eliminates stem seal leakage. Safety stems are designed to be non-removable from the body to avoid dangerous stem "blow out".
Key Features
- Seal Cap
- Non-removable Safety Stem
- Forged Steel Body
- Optional Bar Handle
- Polished Stainless Steel Stem
- O-ring Plus Packing Stem Seal
- Long Neck Available
Additional Features
- Globe and angle valve available
- Heavy-duty forged steel body
- Long Neck gauge valve available
- Unique Transducer/ Gauge valve
- Interchangeable seal caps and bar handles
More Information
| Weight | 1.000000 |
|---|---|
| Condition | New |
| Brand | Hansen |
| Port Size | 1/4" |
| Bar Handle | Steel, zinc plated |
| Body | Forged steel, ASTM A105, zinc plated (H9490 not plated) |
| Seal Cap | Glass filled polymer |
| Stem | Stainless steel, polished, ¼" square flats |
| Stem Packing | Graphite composite plus neoprene O-ring |
| Packing Nut | Steel, zinc plated |
| Safe Working Pressure | 400 psig (28 bar) SWP600 psig (41 bar) available upon request |
| Operating Temperature | -60°F to 240°F (-50°C to +115°C |
| Width | 4 |
| Height | 2 |
| Length | 6 |
| Depth | 4.0000 |
