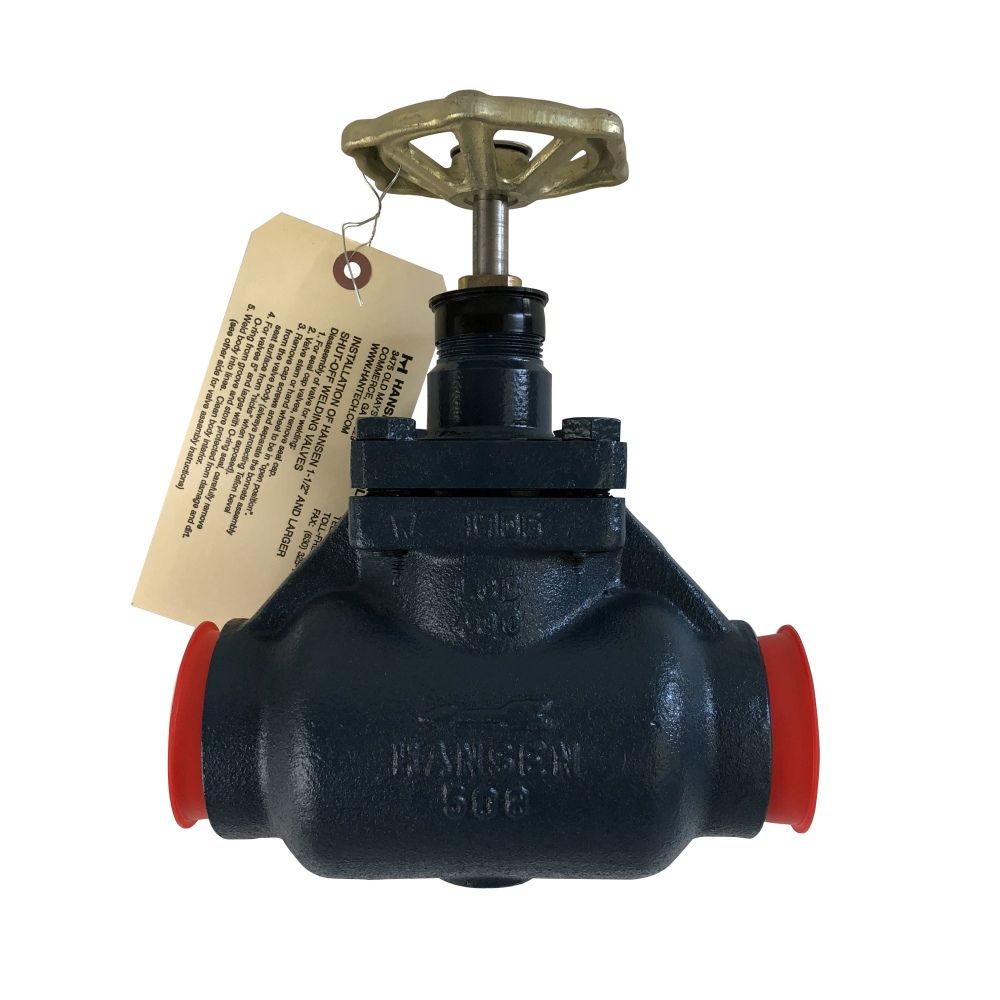

Hansen GS200H, 2 Ammonia Shut-off Valve Globe, Socket Weld, Handwheel

The advanced design and materials of the Hansen Steel Body Socket Weld Refrigerant Valves make them stronger and far superior to other commonly available products. This is especially true in regard to leakage from seats, stems, bonnets, and piping connections. Socket weld steel bodies permit these valves to be quickly and easily welded directly into piping without the inconvenience of pipe threading or using bulkier iron-flanged valves with socket weld steel flanges requiring bolts, nuts, and gaskets. Compared to butt weld valves, the Hansen socket weld bodies allow quicker welding, easier pipe alignment, and cleaner pipe and valve interiors.

Key Features

• Non-leak Seal Plus Packing
• Ball Bearings
• Polished Stainless Steel Stem
• Back Seat for Seal Replacement
• Anti-spin Seat Disc
• Taper Seat

Additional Features

• Globe and angle valves available
• Low-pressure drop design
• Interchangeable handwheel or seal cap
• Teflon seat disc
• Chain actuators available 1-1/2" to 2-1/2" (40mm-65mm)
• Suitable for R717 (ammonia), R22, R134a, R507, R404a, R744 (CO2) and other Hansen-approved refrigerants.
• Valves for 600 psig (41 bar g) SWP available
• Extended neck available for additional insulation clerance
