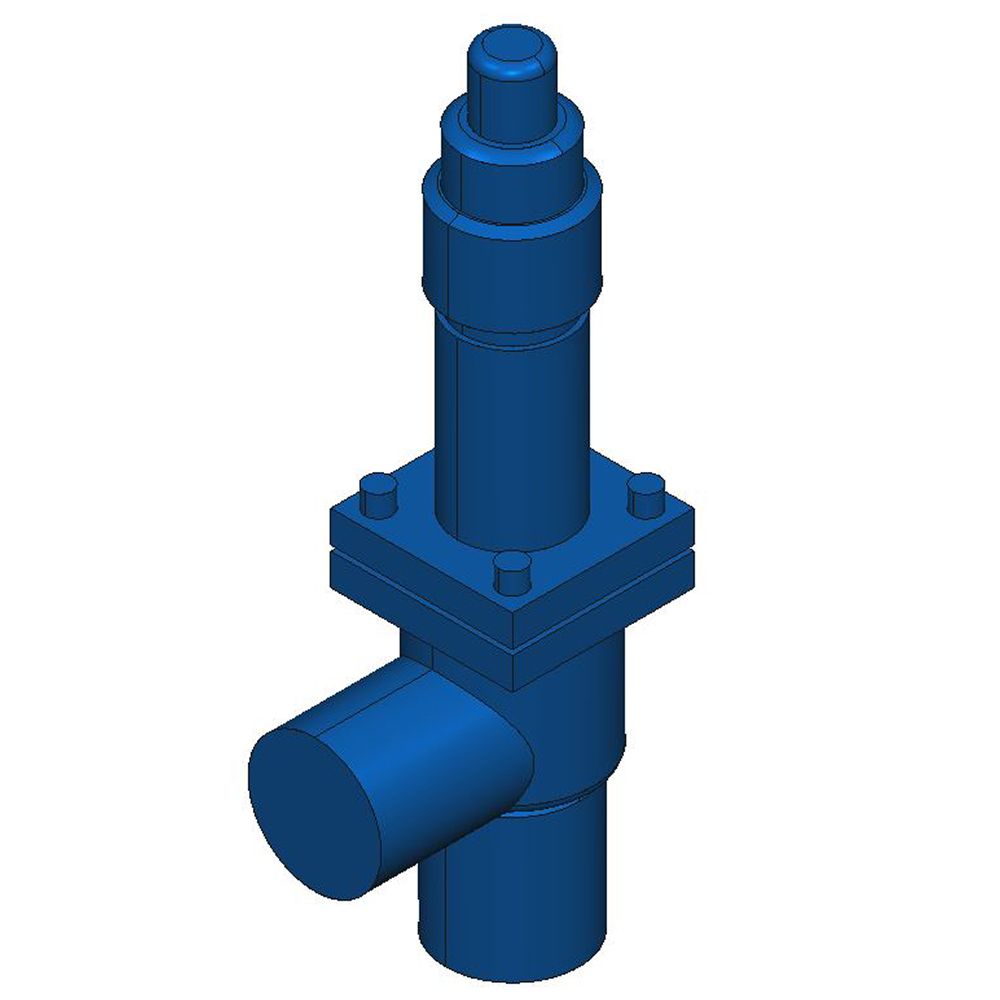

Hansen ATB075C, 3/4 Shut-off Valve, Angle, Bolted Bonnet, Threaded.SC

List Price $311.00 List Price $311.00 Web Price $173.50

Qty:

Save for Later

Estimate shipping for this product

Country

State/Province

Zip/Postal Code

Ask us a question about this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The advanced design and materials of Hansen refrigerant shut-off and hand expansion valves make them far superior to commonly available products. The extended neck of the bolted bonnet design greatly simplifies insulation, and allows compliance with industry guidelines for insulation thickness. In addition, non-leak seats, stems, and bonnets virtually eliminate the possibility for refrigerant leakage. Anyone who has experienced the failure of a shut-off valve at a crucial time will take care to insist upon these highly reliable valves.

More Information

More Information
Weight	5.000000
Condition	New
Brand	Hansen
Port Size	3/4"
Ball Bearings	Stainless steel
Body	Forged steel, ASTM A105
Bonnet	Cast ductile iron, ASTM A536
Bonnet Seal	Non-asbestos graphite composite
Bonnet Style	Bolted Bonnet
Handwheel	Zinc plated alloy
Disc Holder	Plated steel
Seal Cap	Glass-filled polymer, Neoprene O-ring seal, safety vented
Seat Disc	Retained PTFE Teflon
Stem	Polished stainless steel
Stem Packing	Graphite composite plus neoprene O-ring in series
Valve Body Type	Angle
Packing Nut	Zinc plated steel
Safe Working Pressure	400 psig (28 bar g) standard, 600 psig (41 bar g) upon request
Operating Temperature	Standard, -60°F to 240°F (-51°C to 115°C), temperatures below -60°F (-51°C) to -76°F (-60°C) at coincident pressures (Bolted bonnet only) Optional, -20°F to 300°F (-29°C to 149°C)
Connection Style	Threaded
Width	9
Height	5
Length	10

Resources

ATB-1 (Size: 358.5 KB)
