SKU
ATB050H
Brand:
Hansen

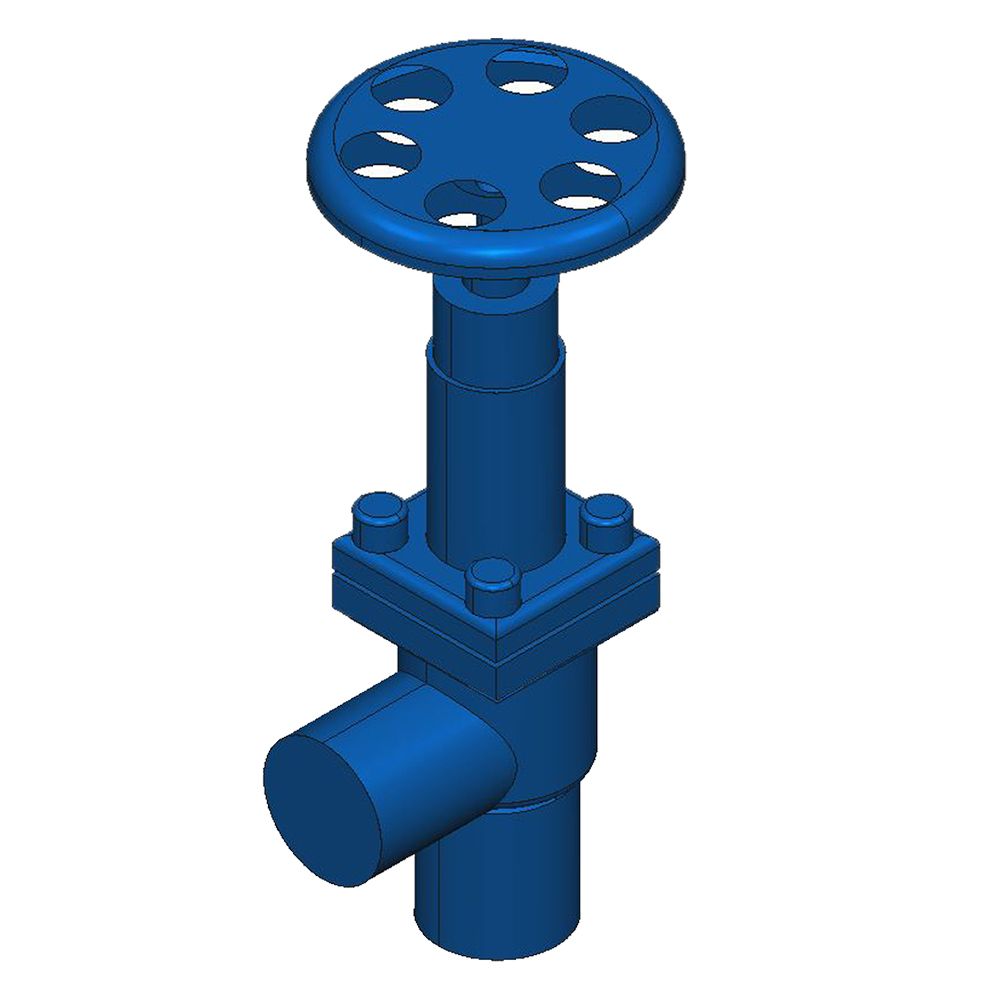

ATB050H Hansen 1/2" Shut-off Valve, Angle, Bolted Bonnet, Threaded, Handwheel

The advanced design and materials of Hansen refrigerant shut-off and hand expansion valves make them far superior to commonly available products.
List Price $252.00 List Price $252.00 Web Price $140.59
Save for Later
Estimate shipping for this product
Ask us a question about this product
main product photo
Details
The advanced design and materials of Hansen refrigerant shut-off and hand expansion valves make them far superior to commonly available products. The extended neck of the bolted bonnet design greatly simplifies insulation, and allows compliance with industry guidelines for insulation thickness. In addition, non-leak seats, stems, and bonnets virtually eliminate the possibility for refrigerant leakage. Anyone who has experienced the failure of a shut-off valve at a crucial time will take care to insist upon these highly reliable valves.
More Information
More Information
Weight 6.000000
Manufacturer Hansen
Condition New
Port Size 1/2"
Body Forged steel, ASTM A105
Bonnet Style Bolted Bonnet
Valve Body Type Angle
Bonnet Cast ductile iron, ASTM A536
Bonnet Seal Non-asbestos graphite composite
Connection Style Threaded
Disc Holder Plated steel
Handle Style Handwheel
Handwheel Zinc plated alloy
Ball Bearings Stainless steel
Packing Nut Zinc plated steel
Seal Cap Glass-filled polymer, Neoprene O-ring seal, safety vented
Seat Disc Retained PTFE Teflon
Stem Polished stainless steel
Stem Packing Graphite composite plus neoprene O-ring in series
Operating Temperature Standard, -60°F to 240°F (-51°C to 115°C), temperatures below -60°F (-51°C) to -76°F (-60°C) at coincident pressures (Bolted bonnet only) Optional, -20°F to 300°F (-29°C to 149°C)
Safe Working Pressure 400 psig (28 bar g) standard, 600 psig (41 bar g) upon request
Resources
ATB-1 (Size: 358.5 KB)
