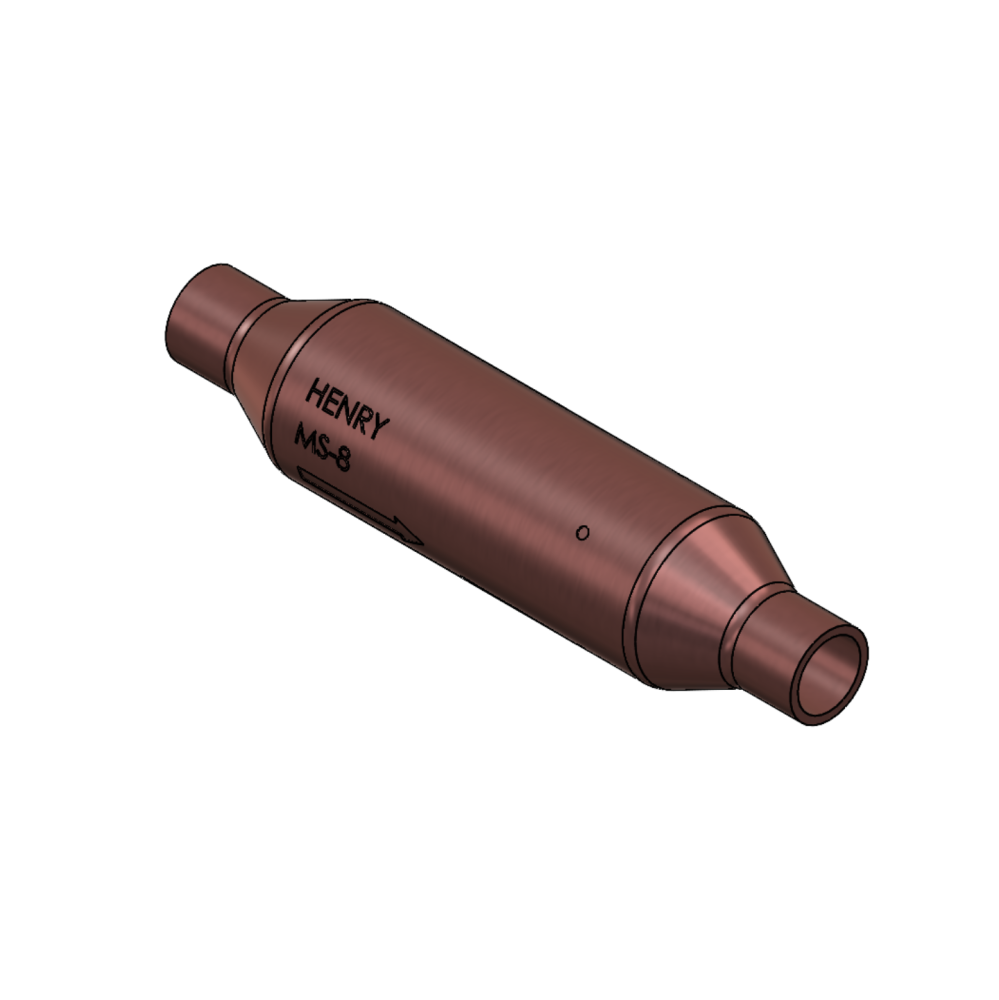

F6308 Henry Magni-Chek Valve MS-8 for 1/2" O.D. Tube Size

Henry F6308 Magni-Chek Valve MS-8 for 1/2" O.D. Tube Size

The Henry Technologies check valve uses magnetic attraction to return the valve plate to its seat rather than spring pressure. A conventional type check valve requires an increase in pressure to force the valve plate off its seat leading to an increase in pressure drop. The magnetic check valve (MCV) has a decreasing force to move it away from its seat. The further it travels the magnetic attraction diminishes leading to a decrease in pressure drop. MCV’s are therefore a more efficient option to conventional check valves.

The Henry MCV uses the latest technology in Dura Form processing, a manufacturing method that eliminates the use of braze materials that can overheat and damage internal components. The body is 100% copper that has been spun into shape and the connections machined. The result is a valve that is hermetically sealed, can easily be installed with either soft or hard solder, with a near-zero leak rate and exceptional performance.

Suitable for use in the Liquid, Suction, Discharge or Hot Gas lines employing fluorinated refrigerants, these valves are ideal in a new installation or as a replacement for conventional check valves.
