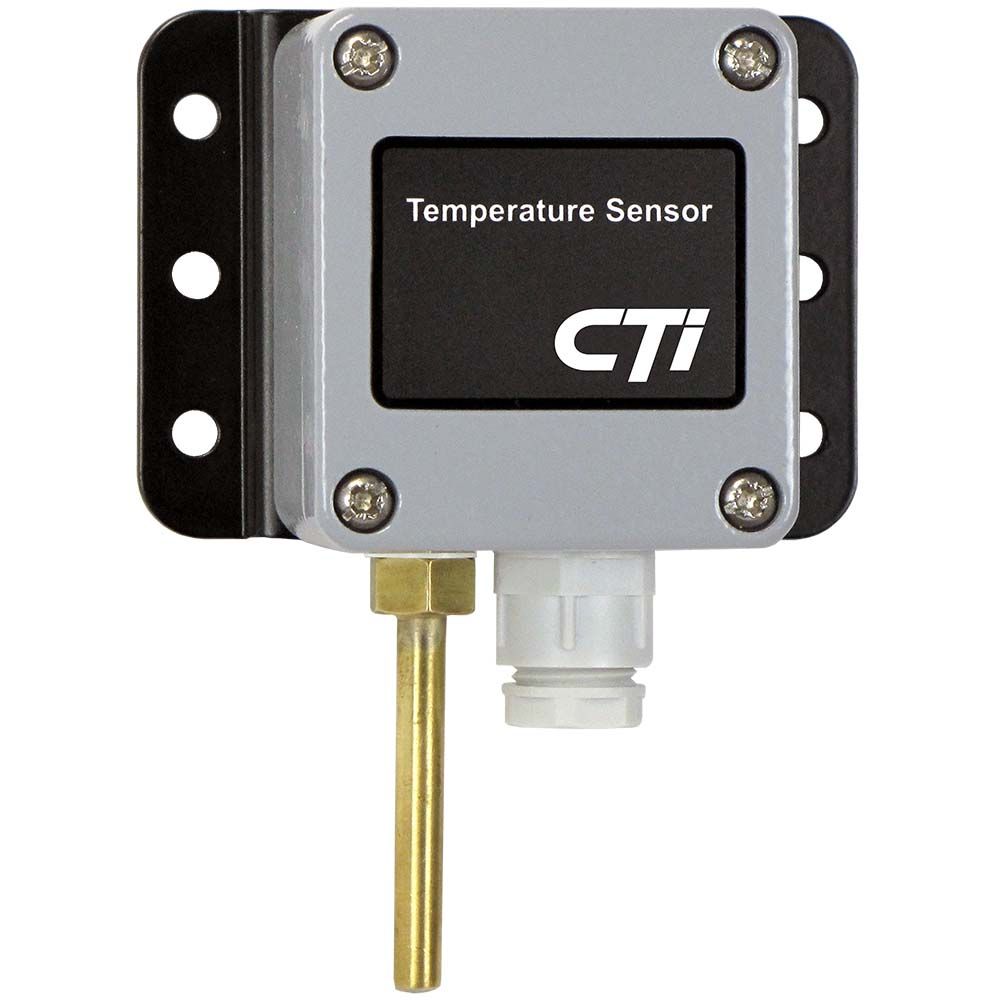

TEMP SENSOR TS2 CTI Temperature Sensor -60 To +160 Deg F 2-wire Transmitter with RTD Probe 4/20 mA Output In Ip65 Al

The Temp Sensor TS2 was designed for indoor/outdoor temperature monitoring. The IP65 aluminum enclosure can withstand washdown areas and other harsh environments. A fast-acting RTD reacts quickly to temperature changes and features a very long expected life with no change in accuracy. This sensor is used for measuring indoor air temperature. Typical applica-tions are mechanical rooms, refriger-ated rooms, etc. Installation should be about 6 ft off the floor, and not located near a cooling or heat source, or di-rectly in front of air blowing channels.

Key Features:

• -60°F to +160°F range (-51°C to +71°C)
• 2-wire transmitter with RTD probe• 24VDC, industry standard linear 4-20 mA output
• Easily adapted to GG line gas detection controllers
• Great for engine room ventilation control and refrigerated areas
• Watertight enclosure designed for washdown areas and outdoors
• Long term accuracy/stability of 0.1% of span/year
