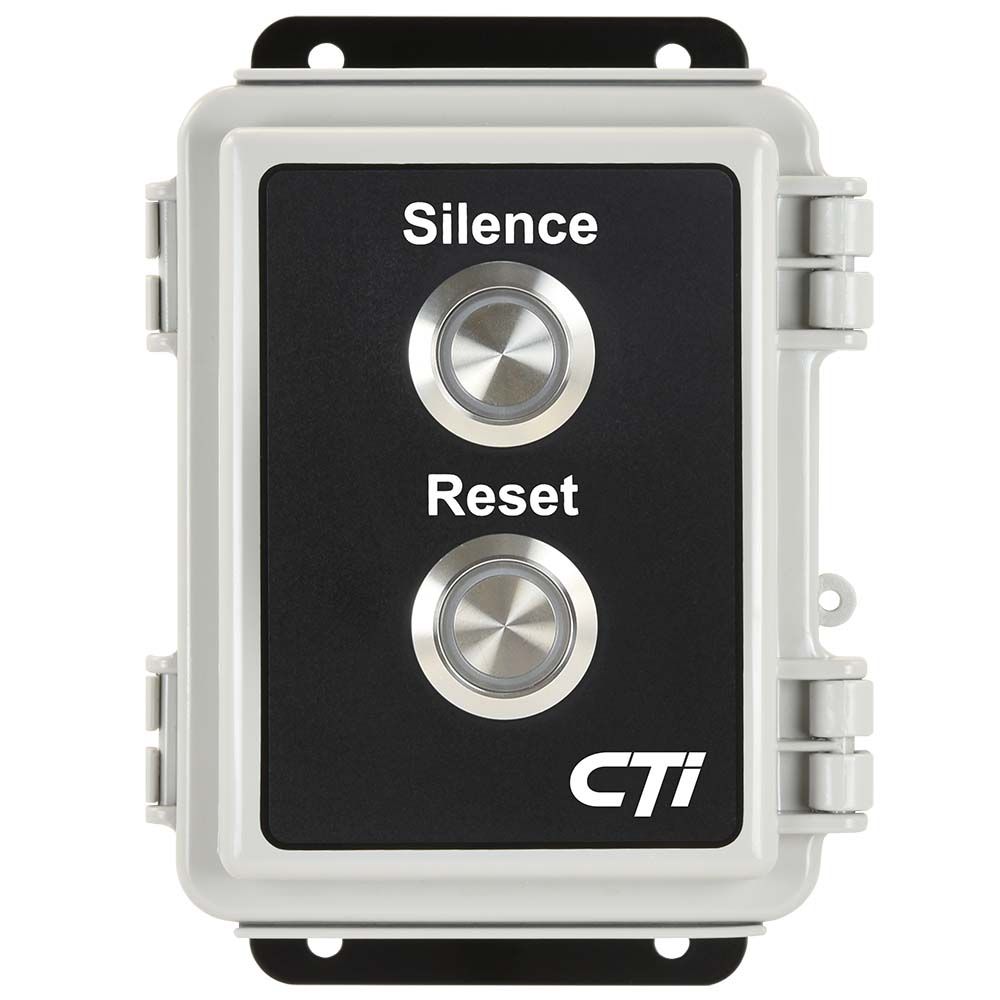

SB-SR1 CTI Remote Silence and Reset Switch 24VDC LED Lit Momentary 24VDC Out NEMA 4 Polycarbonate Enclosure

The R1 and SR1 switches allow the GG-6 control panel to be located outside of the compressor room with the Reset and Silence switches located inside the compressor room for easy access. The switches are connected to the GG-6 controller via three wires for the reset switch and four wires for the silence/reset, and has wire terminals on the circuit board for optional switch lighting.

Key Features:

• Stainless steel 22 mm momentary pushbutton switch

• LED ring backlit for higher visibility

• IP66/NEMA 4 weatherproof design for outdoors or washdown environments

• 24 VDC rated (provided by GG-6 control panel)

• 1.5 Amp normally open contacts

• Circuit board with terminal block for wire landings

• Mounting flanges for wall mounting

• Solution for compressor room ventilation remote reset application

• Silence switch allows operators to silence horns if desired

• 2-year warranty
