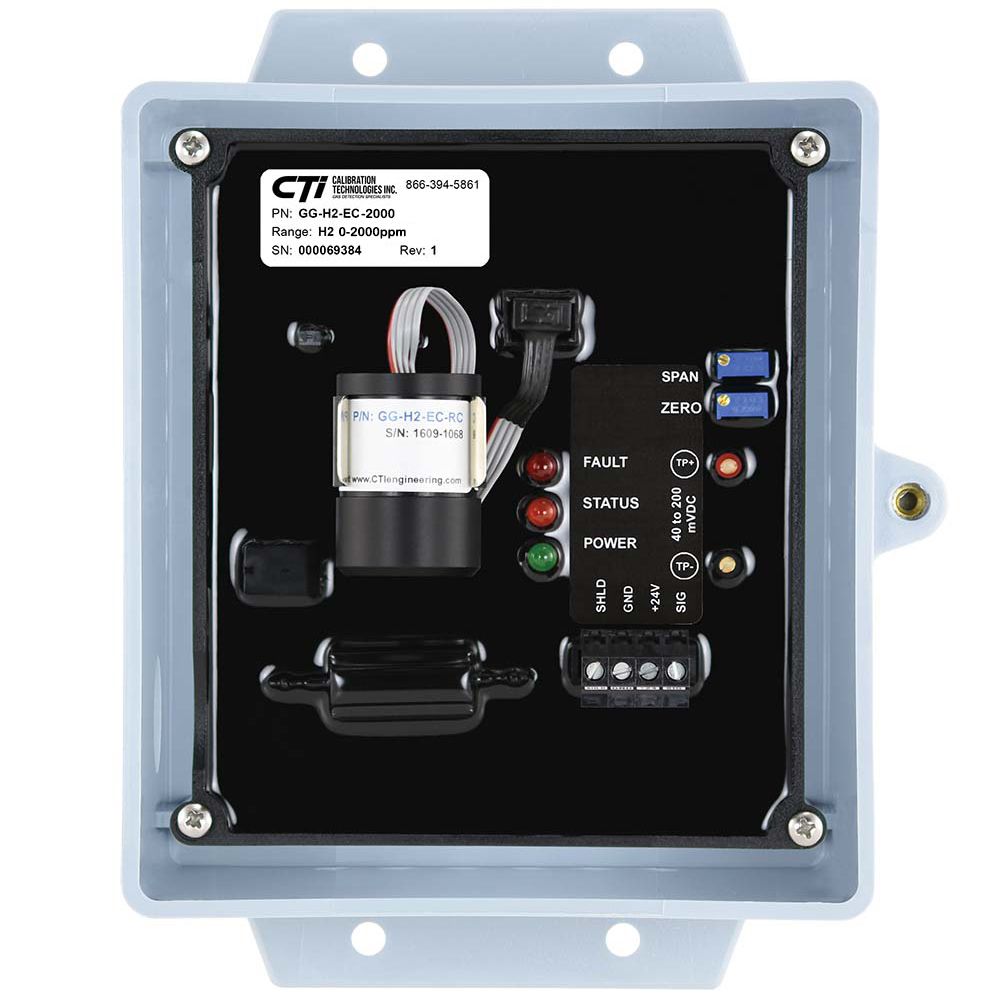

The GG-H2-EC utilizes proven electrochemical sensor technology for fast and accurate detection. The standard detection range provides real-time continuous monitoring of hydrogen concentrations accurately down to 200 ppm (0-2,000 ppm range), with no false alarms.
The GG-H2-EC provides an industry standard linear 4/20 mA output signal compatible with most gas detection systems and PLCs. The output signal is not affected by drastic temperature variations or other atmospheric conditions.
Key Features:
Hydrogen specific electrochemical sensor technology. Absolutely no false alarms
Industry standard linear 4/20 mA output
Corrosion, weather, and chemical resistant polycarbonate sensor enclosure
Intelligent-design enclosure temperature control for improved cell life
Sensor designed to adapt to any harsh environment from -40°F to +120°F
Real-time continuous monitoring for early detection of explosive concentra-tions
Detection ranges of 0-10,000 ppm (25% LEL) and 0-2,000 ppm (5% LEL) H2
2 year warranty
Weight | 3.000000 |
---|---|
Condition | New |
Manufacturer | Calibration Technologies (CTI) |
Size | 7.5" high x 6.5" wide x 3.75" deep |
Temperature Range | -40°F to +120°F (-40°C to +49°C) |
Warranty | 2 years (including sensor element) |
