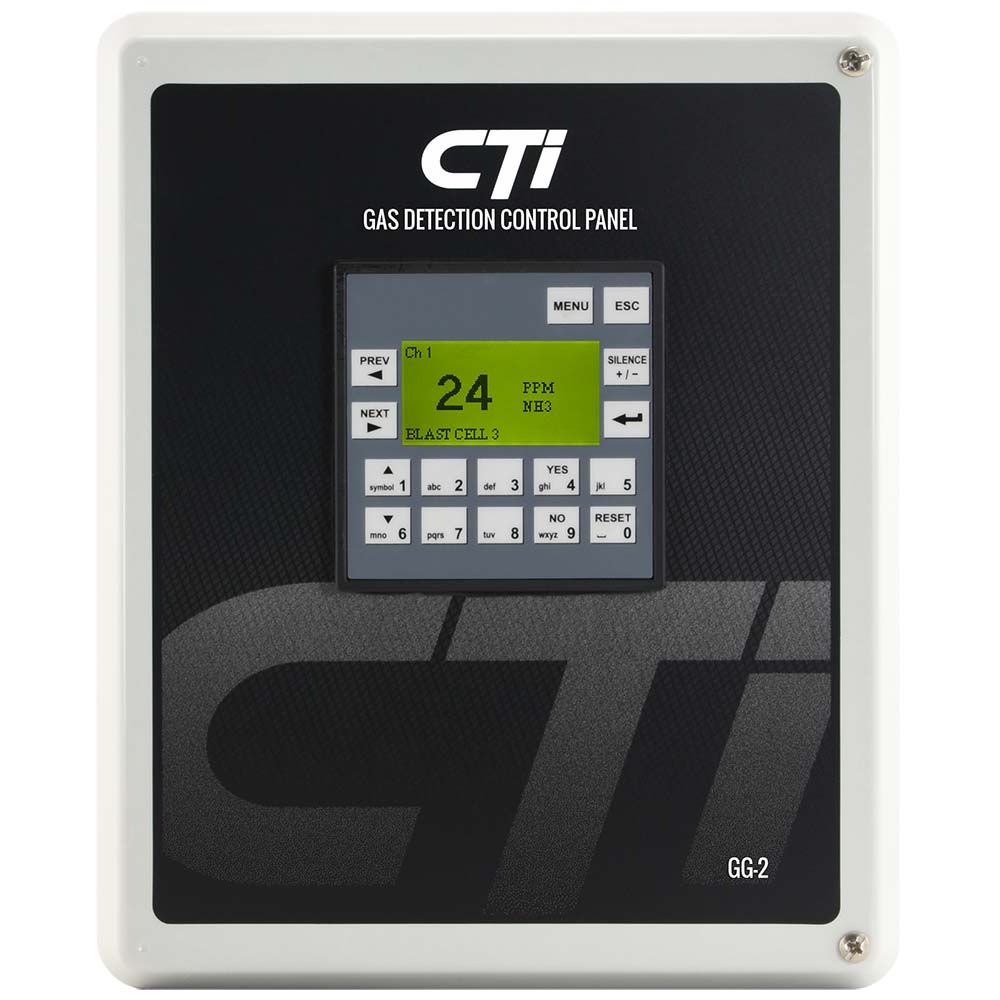

Two Channel Controller used for gas detection systems in engine rooms and other 2 channel applications.
The GG-2 can interface to, but operate independently of plant control systems for a reliable stand-alone safety system. Multiple digital and analog outputs provided on the GG-2. The GG-2 has a total of 6 relay outputs, including one warning and one alarm relay per channel, one common fault relay, and one common horn relay. An onboard buzzer works in tandem with the common horn relay. Analog outputs are standard, which can be sent to a plant PLC or other 4/20 mA control panel.
Key Features
Simultaneously monitor two sensor locations
Six onboard relays standard
Alarm Log records and stores every event
Industry standard linear 4/20 mA input
Simple menu-driven programming through the LCD operator interface
Power supply can also drive external horn/strobes
Watertight enclosure designed for washdown areas and outdoors
Configurable for CTI sensor line and any other 4/20 mA gas sensor
Horn relay silenceable from front-panel Silence key
Weight | 7.650000 |
---|---|
Manufacturer | Calibration Technologies (CTI) |
Condition | New |
Size | 11.3" high x 9.3" wide x 7.0" deep |
Features | Calibration Mode, Relay Test Function, Adjustable warn and alarm setpoints, Alarm Log, adjustable relay latch/non-latch, downscale alarm setting for O2 monitoring, horn silence button, |
Warranty | 2 years |
Power Requirements | 100-240 VAC, 1.3 A, 50/60 Hz |
AC Power for Sensors | 110 VAC @ 1A |
DC Power for Sensors | 2 available channels-- + 24 VDC @ 2.2A |
Display | Backlit Digital LCD w/ real time status display |
Enclosure | Fiberglass Reinforced Polyester NEMA 4X, IP 65, with neoprene gasket. Continuous stainless steel hinge. Captive screws in lid. For non-classified areas |
Relay Outputs | (1) Common Horn (1) Common Fault (2) Individual Warn Relays (2) Individual Alarm Relays |
Ambient Temperature | 0°F to +122°F (-18°C to +50°C) |
