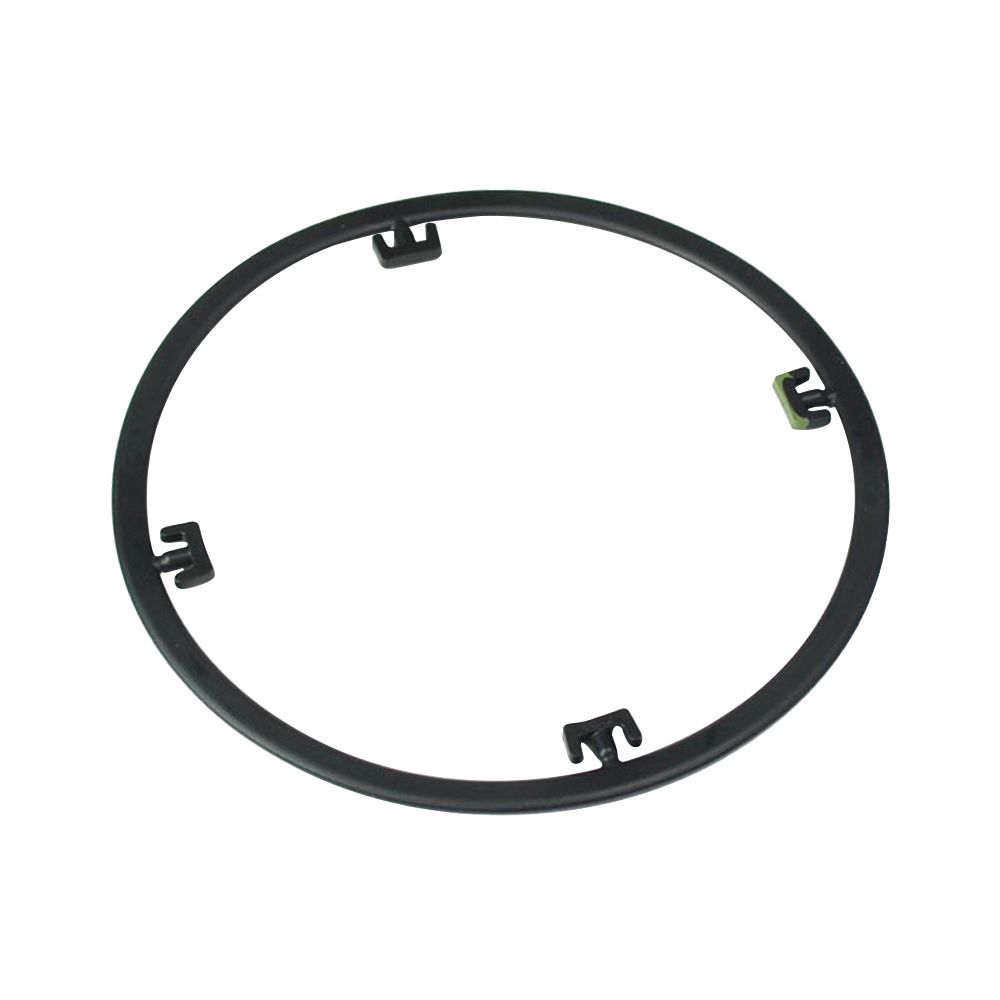

3233029145 Alfa Laval MK15BW-CR-C/PEAK Ring Gasket

Alfa Laval Industrial semi-welded line is used when gaskets are not suitable for one of the process media. The semi-welded line can also withstand a higher design pressure compared to fully gasketed plate-and-frame heat exchangers.

The relatively short plate makes this model suitable for duties with short temperature programs and when a low pressure drop is appreciated. A large range of plate and gasket types is available.

Applications

• Chemicals
• Energy and Utilities
• Food and Beverages
• HVAC and Refrigeration
• Marine and Transportation
• Mining, Minerals and Pigments
• Pulp and Paper
• Steel
• Water and Waste treatment

Benefits

• High energy efficiency – low operating cost
• Flexible configuration – heat transfer area can be modified
• Easy to install – compact design
• High serviceability – easy to open for inspection and cleaning and easy to clean by CIP
• Access to Alfa Laval’s global service network

Features

Every detail is carefully designed to ensure optimal performance, maximum uptime and easy maintenance. Selection of available features:

• 5-point alignment system
• Chocolate pattern distribution area
• Clip-on gasket
• Leak chamber
• RefTightTM sealing system
• Bearing box
• Fixed bolt head
• Keyhole bolt opening
• Lifting lug
• Lining
• Lock washer
• Pressure plate roller
• Tightening bolt cover
• Optimized Alfa Laval drain connection
