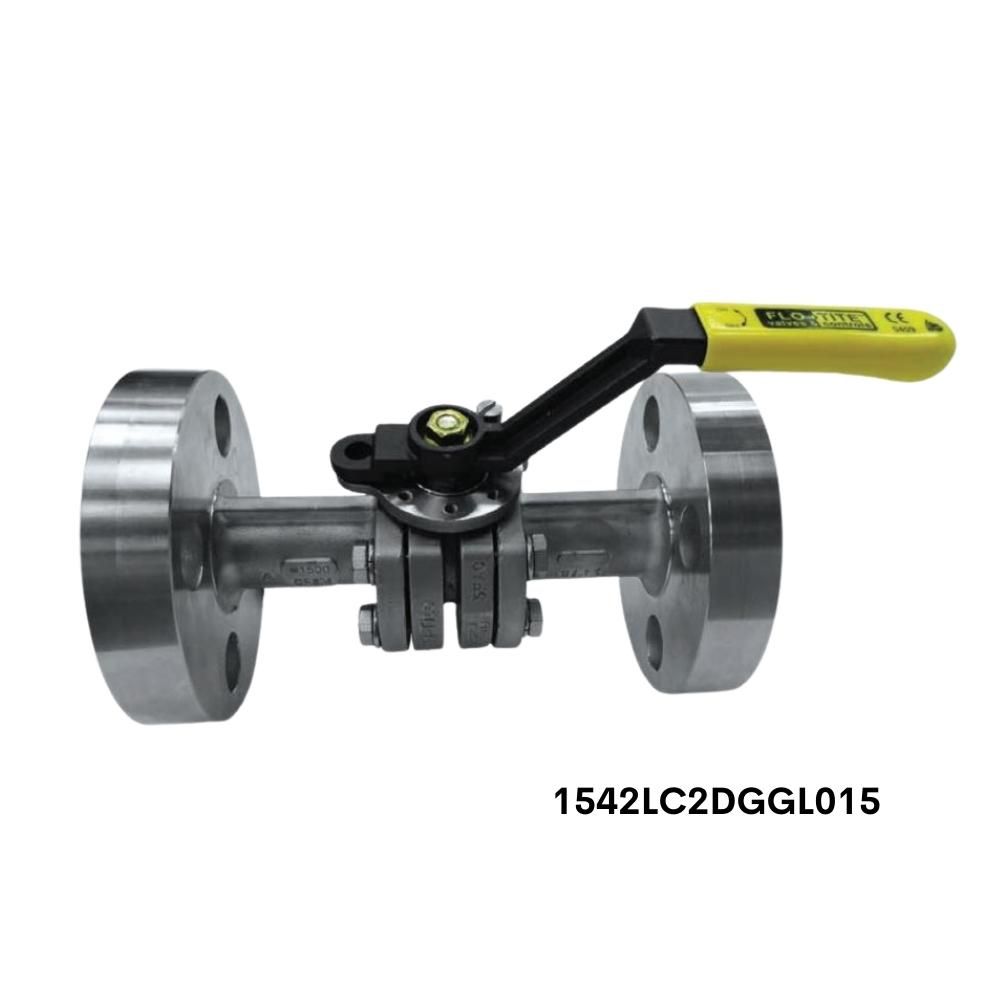

1542-LC-2-DGG-L-015 Flo-Tite 1/2" LCC 3 Piece Ball Valves, Titan 1540 Series

Flo-Tite's TITAN Series valves are designed as a three-piece construction to allow ease of access for maintenance of the valve ball and seat without special tools. This line of valves utilizes the "free-floating" ball principle. The ball is not fixed but is free to move with the line pressure. As a result, these valves are capable of tight shut-off with the flow in either direction or dead-ended, regardless of the position of the valve in the line. The downstream seat, which is opposite the pressurized side, of a closed valve, must carry the load exerted by the line pressure on the ball, while the upstream seat is subject to little load or wear. For this reason, it is sometimes possible to increase useful seat life by turning the valve end-to-end in the pipeline.

MODELS 1540 Series: Carbon Steel 1550 Series: Stainless Steel

Design Features:

• 3 piece bolted body design
• Blow out proof stem design
• 17-4PH stem standard
• Heavy-duty, rugged construction
• Lockable handles
• API 607-5th edition fire safe
• API 608 compliance
• Anti-static ground
• Casting traceability
• Actuator mounting pad, ISO5211
• Ability to handle pressure, temperature, and shock
• Ability to withstand higher pressure drop
• Ability to handle slurries and resist abrasion and wear
• Ability to handle thermal fl uid and super heated steam
• Bubble tight sealing to 4500 psi
• Metal seat classes V & VI shut off
