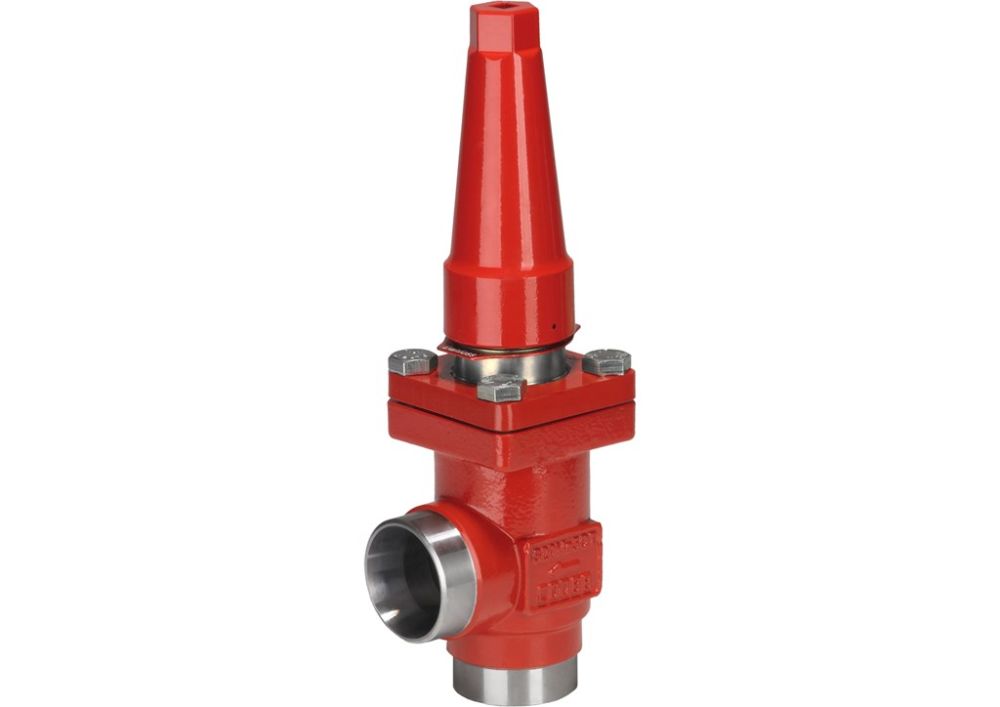

Danfoss 148B5323, Shut-Off Valve, SVA-S 20, Angle, 3/4 SOC, w/ seal cap

Danfoss offers a very wide range of shut-off valves for all refrigeration applications. From small BM valves for fluorinated refrigerants to huge SVA valves for HCFC, HFC, Ammonia, CO2 and flammable refrigerants, the range of shut-off valves also comprises drain valves and gauge valves. Danfoss Shut-off valves are available as complete products or as parts programme, consisting of separate valve bodies, function modules and top parts.

Features:

• Applicable to HCFC, HFC, R717 (Ammonia), R744 (CO2) and all flammable refrigerants.
• Modular Concept: – Each valve housing is available with several different connection types and sizes. – Possible to convert SVA-S or SVA-L to any other product in the FlexlineTM SVL family (hand operated regulating valve, check & stop valve, check valve or strainer) just by replacing the complete top part.
• Fast and easy valve overhaul service. It is easy to replace the top part and no welding is needed.
• Optional accessories: – Heavy duty industrial hand wheel for frequent operation. – Cap for infrequent operation.
• Available in angleway and straightway versions with Standard neck or Long neck (DN 15 to DN 40) for insulated systems.
• Each valve type is clearly marked with type, size and performance range.
• The valves and caps are prepared for sealing, to prevent operation by unauthorized persons, using a seal wire.
• Internal metal backseating: – DN 6 - 65 (¼ - 2½ in.), Internal PTFE backseating: – DN 80 - 200 (3 - 8 in.)
• Can accept flow in both directions.
• Housing and bonnet material is low temperature steel according to requirements of the Pressure Equipment Directive and other international classification authorities.
• Equipped with stainless steel bolts.
• Max. working pressure: 52 bar g / 754 psig
• Temperature range: -60 – 150 °C / -76 – 302 °F
