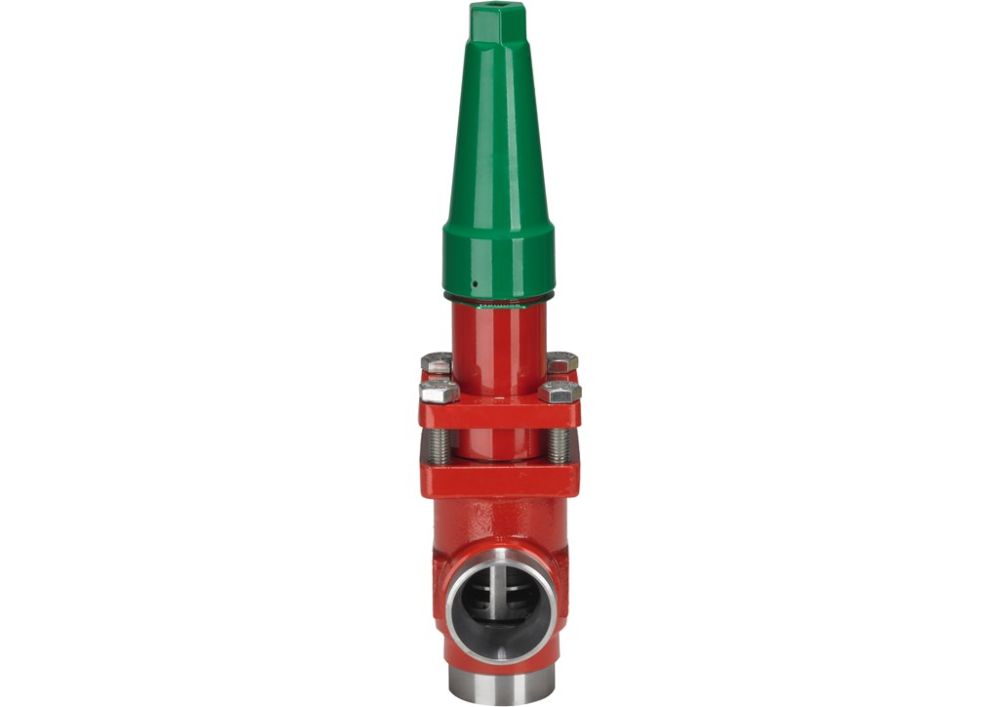

SCA-X are check and stop valves with built-in stop valve function. SCA-X valves are available in angleway versions. The valves are designed to open at very low differential pressures, allow favourable flow conditions and are easy to disassemble for inspection and service. SCA-X valves are equipped with vented cap and have internal backseating enabling the spindle seal to be replaced whilst the valve is still under pressure. Laser cut V-ports provide excellent opening characteristics (SCA-X 50-125). The valve cone has a built-in flexibility to ensure a precise and tight closing towards the valve seat.
More Information
More Information
Weight
4.810000
Condition
New
Brand
Danfoss
Port Size
3/4"
Minimum Temperature Range C
-60 °C
Minimum Temperature Range F
-76 °F
Maximum Temperature Range F
302 °F
Maximum Temperature Range C
150 °C
Refrigerants
Applicable to HCFC, HFC, R717 (Ammonia), R744 (CO2), Propane, Butane, Iso-Butane and Ethane..
