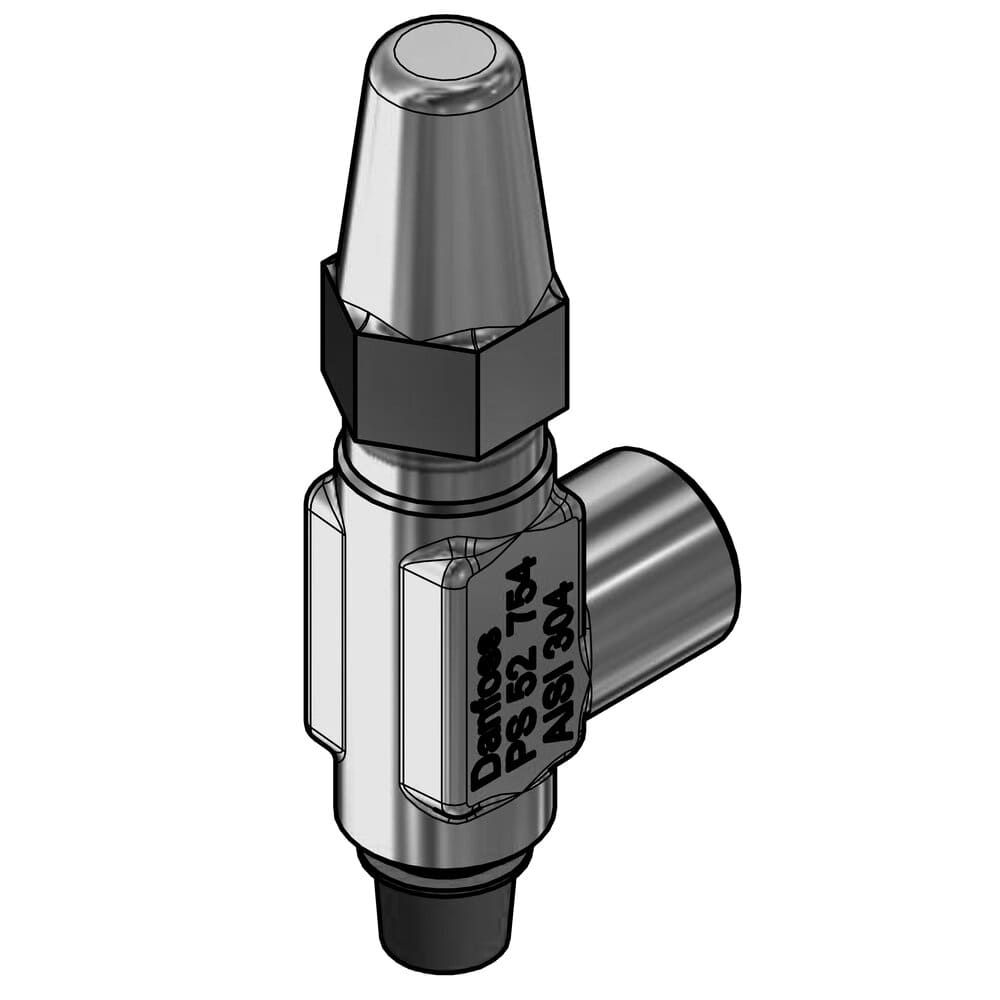

148B4772 Danfoss SNV-ST Gauge Valve

Danfoss SNV-ST stop needle valve (1/4" MPT x FPT) and adapter for mounting on ICS or PM valve.

List Price $86.79 List Price $86.79 Web Price $55.35

Qty:

Save for Later

Estimate shipping for this product

Country

State/Province

Zip/Postal Code

Ask us a question about this product

Skip to the end of the images gallery

SHIPS TODAY

Skip to the beginning of the images gallery

Details

SNV gauge valves are designed as service valves with a very sturdy construction. SNV-ST are made in steel approved for low temperature operations, SVA-SS are stainless steel versions. SNV valves have internal backseating (metal to metal), enabling the spindle seal to be replaced while the valve is still under pressure. SNV is applicable to HCFC, non flammable HFC, R717 (Ammonia) and R744 (CO2).

More Information

More Information
Weight	2.000000
Condition	New
Manufacturer	Danfoss
EAN	5702428045797
Minimum Temperature Range C	-60 °C
Minimum Temperature Range F	-76 °F
Maximum Temperature Range F	302 °F
Maximum Temperature Range C	150 °C
Inlet Connection Type	NPT
Refrigerants	Applicable to all common refrigerants including R717 and R744 (CO2 ) and non corrosive gases/ liquids. For further information please see installation instruction for SNV-ST
Material	Low temperature steel
Maximum Working Pressure (PSIG)	754 psig
Maximum Working Pressure (BAR)	52 bar
Outlet Connection	1/4"
Inlet	1/4"
Type	SNV-ST 7/16UNF-1/4MPT
GTIN/UPC	5702428045797
Width	6
Height	3
Length	10

Resources

SNV-SS-1 (Size: 1.3 MB)
