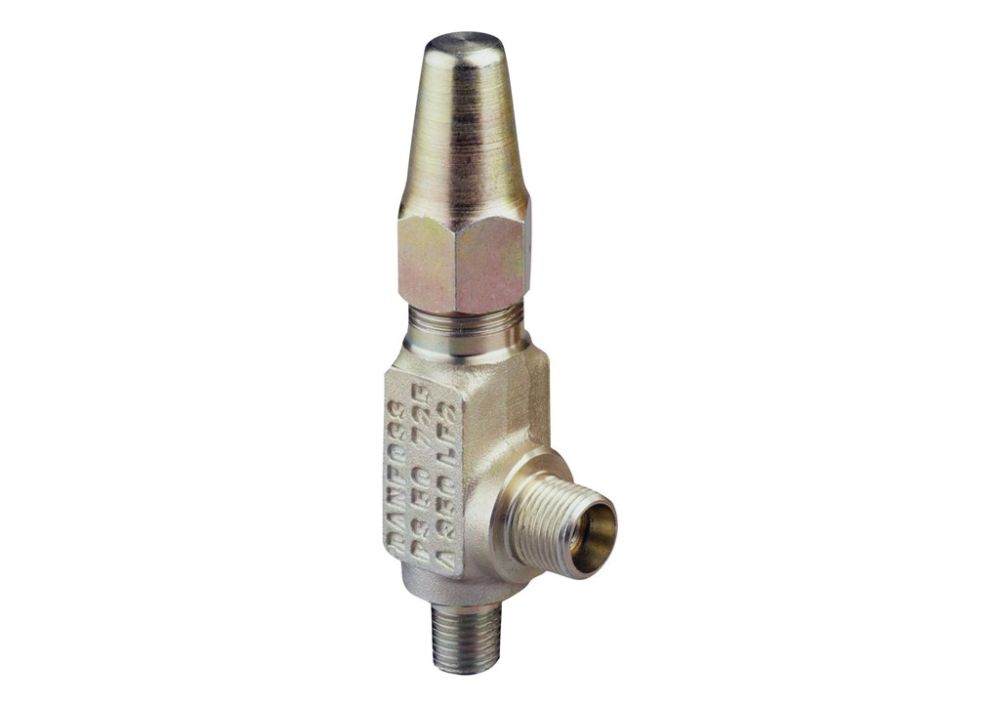

Danfoss SNV-ST stop needle valve, 1/2" NPT x 3/8 NPT (bottom x side connections).
List Price
$101.46
List Price
$101.46
Web Price
$64.70
Details
SNV gauge valves are designed as service valves with a very sturdy construction. SNV-ST are made in steel approved for low temperature operations, SVA-SS are stainless steel versions. SNV valves have internal backseating (metal to metal), enabling the spindle seal to be replaced while the valve is still under pressure. SNV is applicable to HCFC, non flammable HFC, R717 (Ammonia) and R744 (CO2).
Refrigerants:
- R113
- R114
- R1233zd(E)
- R1234yf
- R1234ze(E)
- R125
- R1270
- R1336mzz(Z)
- R134a
- R152a
- R170
- R22
- R227ea
- R23
- R236fa
- R290
- R32
- R401A
- R402A
- R402B
- R404A
- R407A
- R407B
- R407C
- R407F
- R407H
- R408A
- R409A
- R410A
- R417A
- R421A
- R422A
- R422B
- R422D
- R427A
- R438A
- R444B
- R447A
- R448A
- R449A
- R449B
- R450A
- R452A
- R454B
- R455A
- R502
- R503
- R513A
- R600
- R600a
- R717
- R744
- RE170
- R507A
More Information
| Weight | 2.000000 |
|---|---|
| Condition | New |
| Manufacturer | Danfoss |
| Body Material | Steel |
| Minimum Temperature Range C | -60 °C |
| Minimum Temperature Range F | -76 °F |
| Maximum Temperature Range F | 302 °F |
| Maximum Temperature Range C | 150 °C |
| Inlet Connection Type | NPT |
| Refrigerants | Applicable to all common refrigerants including R717 and R744 (CO2 ) and non corrosive gases/ liquids. For further information please see installation instruction for SNV-ST |
| Material | Low temperature steel |
| Maximum Working Pressure (PSIG) | 754 psig |
| Maximum Working Pressure (BAR) | 52 bar |
| Outlet Connection | 1/2" |
| Inlet | 1/2" |
| Type | SNV-ST 3/8FPT-1/2MPT |
| GTIN/UPC | 5702428484565 |
