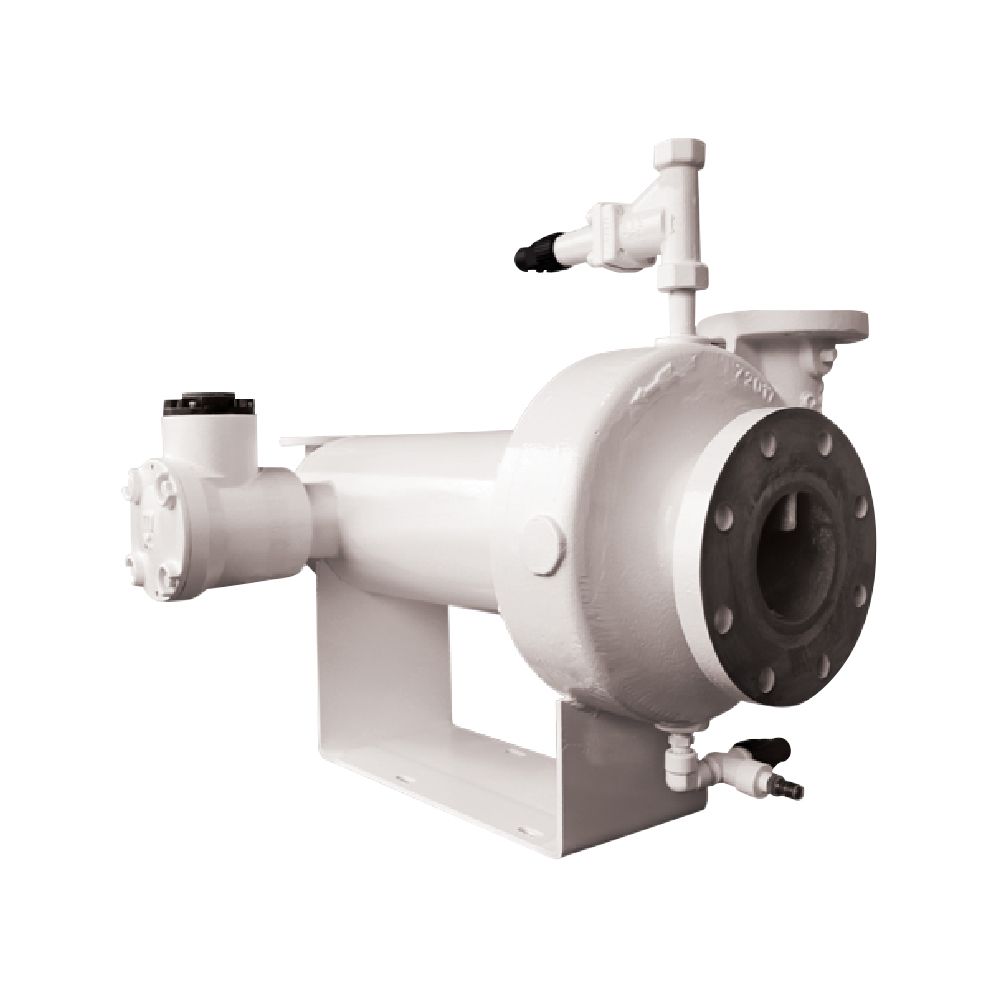

1.5HT-4/1.5-5-1800-460 Cornell Pump, 1.5HT Pump, 5HP, 1800 RPM, 460 Volt

The Arctic King Semi-Hermetic refrigeration Pumps are a drop-in replacement (flange-to flange) for Cornell's CB-series. They operate without the need for a mechanical seal using hermetic technology, with exceptional NPSHr. The Arctic King includes an integrated bearing monitor for continuous monitoring during operation. By running at low 1200 /1800 RPM speeds the NPSHr characteristics are enhanced throughout the operating range of the pump.

Standard Construction:

All pumps are priced as horizontal configuration with ductile iron construction, enclosed impeller, 304 stainless steel shaft, forged steel valves, and neoprene o-rings. Maximum working pressure is 250 PSID. All HT series pumps include a built-in bearing condition indicator.

Seals:

HT Pumps are hermetic and require no shaft seal.

Features & Benefits:

• Industry-leading three year warranty
• 250 PSIG working pressure
• Built-in bearing monitor
• Stainless steel motor liner
• 200°C Thermal Protection
• Integrated bearing monitor
• No mechanical seal required
• Exceptional NPSHr
• Enhanced vapor-handling abilities
