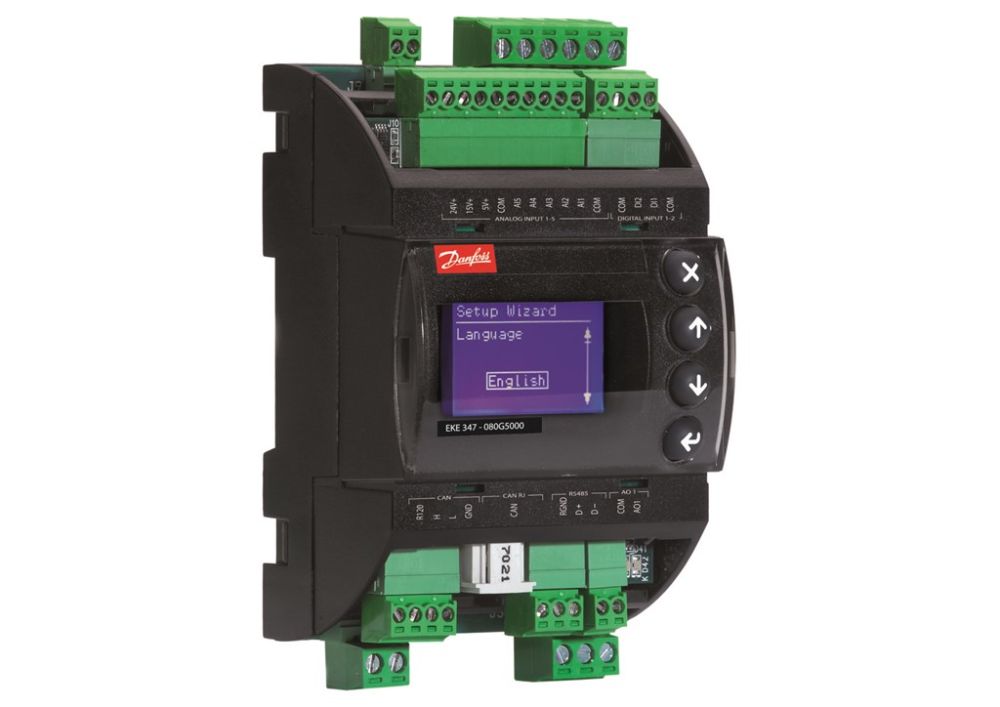

080G5000 Danfoss EKE 347 liquid level controller for DIN rail mounting in customer supplied panel box and powered with 24Va.c.

The controller is communicating with a transmitter that continuously measures the liquid level in the actual reservoir. By comparing the measured value with the level setpoint entered by the customer, the controller dictates the valve to increase or decrease the liquid flow to or from the reservoir.

Key Features:

• Liquid level control
• Alarm if the set alarm limits are exceeded
• Relay outputs for upper and lower level lim-its and for alarm level
• User friendly and easy setup Wizard for first time configuration
• PI control
• Low or High side control
• When AKV/A is selected, a MASTER/SLAVE  system can run up to 3 AKV/A with distrib-uted Opening Degree
• Manual control of output
• Limitation of Opening degree possible
• ON/OFF operation with hysteresis
• Programming menu with 3 access levels and separate passwords
• Connection to other EKE 347 controllers possible
• Wired remote display possible
• BUS communication:

  • CAN Bus (Danfoss internal only)
  • MODBUS RTU RS485 for communication with e.g. PLC
