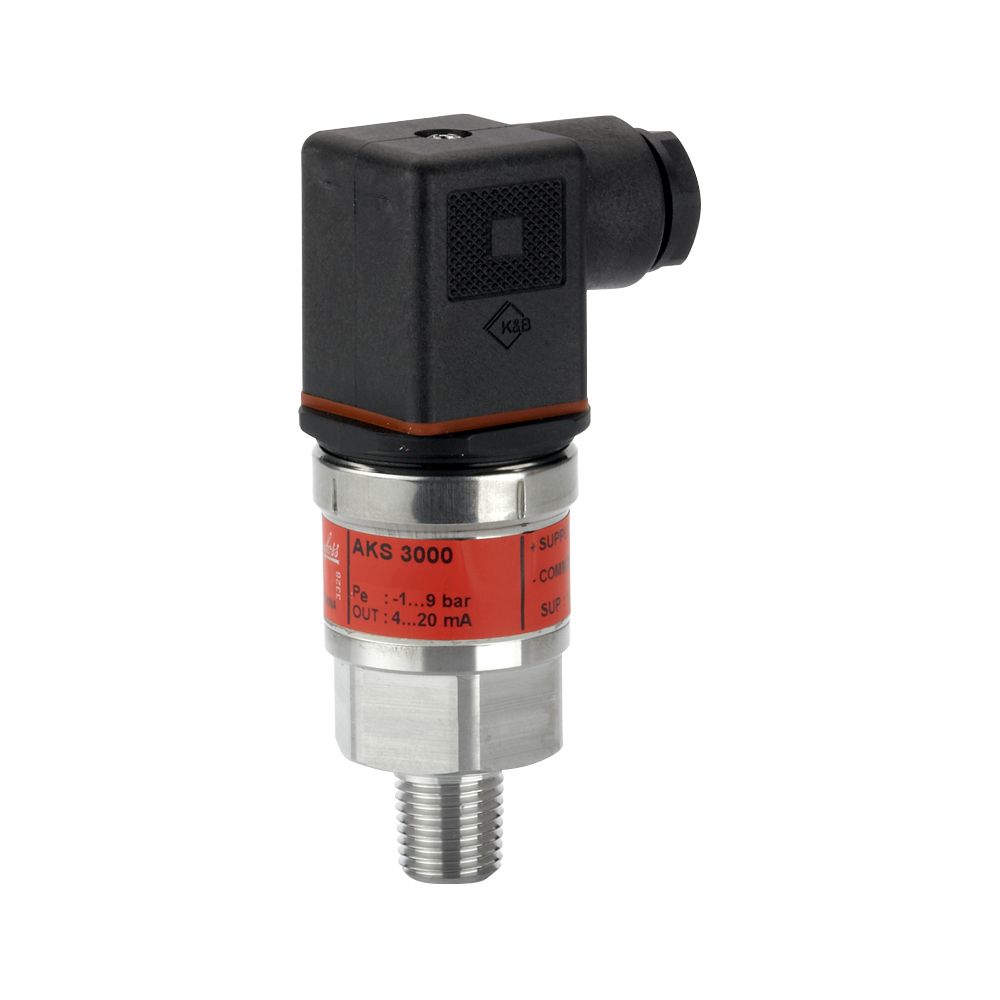

060G3807 Danfoss Sensor AKS 3000 1/4 NPT, 0-200psi

AKS 3000 is a series of absolute transmitters with high-level signal conditioned current output, developed to meet demands in A/C and refrigeration. AKS 3000 utilizes the proved piezoresistive measuring principle, which has been used for decades in Danfoss pressure transmitters.The pressure reference is a sealed gauge. This means that atmospheric pressure variations have no influence on regulating accuracy. A must in accurate low pressure regulation. All materials in contact with the refrigerant and materials for the housing are AISI 316L stainless steel. No soft gaskets, all environmental sealings are made through laser weldings only. AKS 3000 has a 4 – 20 mA output, and is available with spade terminals for EN 175301-803 plug.

Features:

Designed to meet A/C and refrigeration demands without compromising control accuracy concerning:

• Tough environment
• Vibration
• Shock during operation and transport
• Humidity and ice formation
• Temperature variations
• Corrosive media like ammonia gases and salt mist
• Convenient performance
• 4 – 20 mA signal
• 1% typical accuracy
• 0.5% typical linearity
• Prepared for high pressure refrigerants Bar code for tracing of calibration data
• Convenient performance
• Compact design
• Max. working pressure ≥33 bar
• Temperature compensation for suction line
• Optimized accuracy at -10 °C and 20 °C for suction line installations, see page 4
• ¼ -18 NPT, G 3⁄8 A, G ½ A or ¼ flare ensures tight pressure connection
• All laser welded AISI 316L stainless steel enclosure
• No soft seals
• Enclosure: IP65
• For use in zone 2 explosive atmospheres
• Application
• Fan speed control
• High pressure control
• Compressor capacity control
• Evaporator pressure detection
• Oil pressure control
