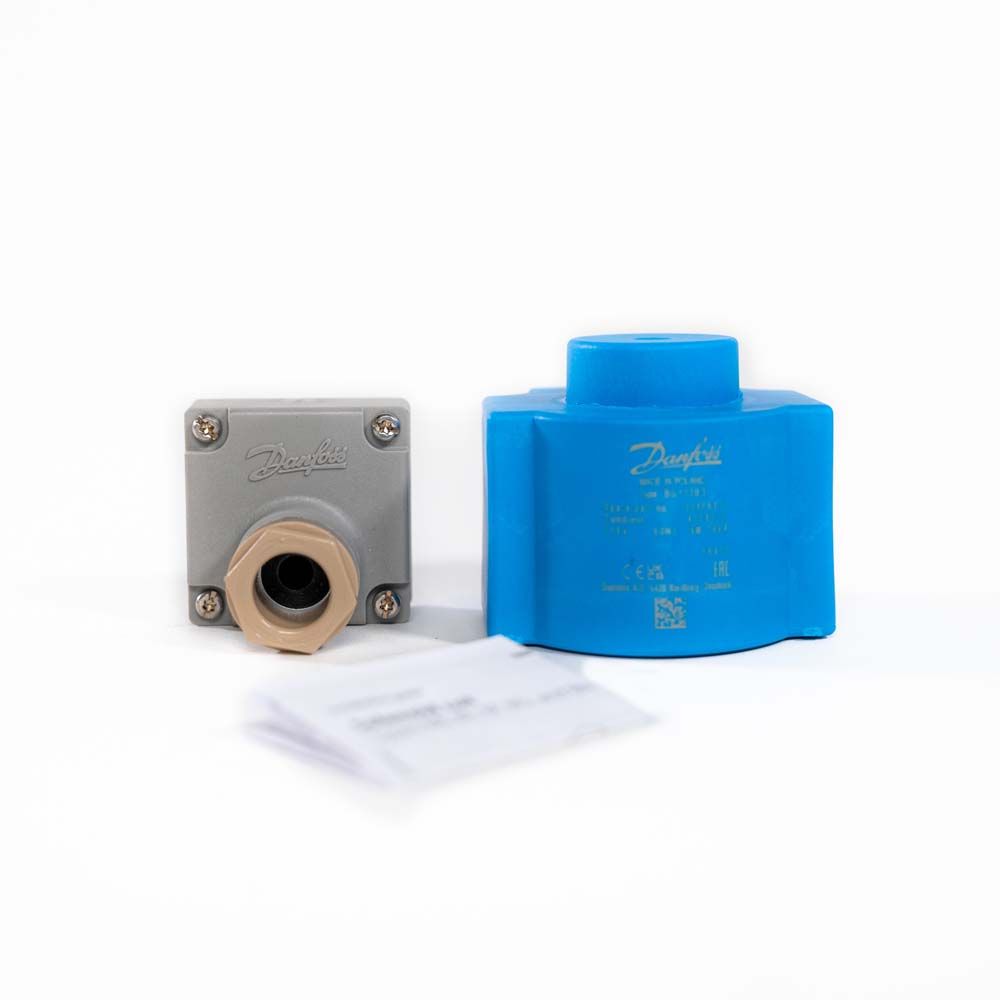

018F6813, Danfoss, Coil: heavy duty, w/ terminal box, 110 VAC 60Hz
List Price
$116.12
List Price
$116.12
Web Price
$76.91
Details
Danfoss solenoid valves and coils are usually ordered separately to allow maximum flexibility, enabling you to select a valve and coil combination to best suit your needs.
The Danfoss coil program consists of both the easy-to-handle Clip-On system and traditional coils with threaded fastener.
Danfoss offers a wide range of application specific coils for e.g. steam or hazardous areas. The coils are available with approvals such as EN60730-1, EEx/ATEX, and UL.
Features:
- Encapsulated coils with long operating life, even under extreme conditions
- Standard coils for AC or DC
- Standard coils from 12 V – 400 V, 50, 60, 50 / 60 Hz or DC
- Standard coils available with:
- Cable plugs
- Industrial plugs
- Terminal box
- 3 core cable
- Junction box
- Conduit hub
More Information
| Weight | 2.000000 |
|---|---|
| Condition | New |
| Brand | Danfoss |
| EAN | 5702428027847 |
| Enclosure Rating | IP67 |
| Coil Connection | Connection box |
| Coil Design Standard | VDE 0580 |
| Frequency | 60 Hz |
| Supply voltage [V] DC [Max] | 110 V |
| Supply voltage [V] AC [Max] | 110 V |
| Electrical Connection | Terminal box |
| Electrical Connection Size | Pg 13.5 |
| Minimum Ambient Temperature (C) | -40 °C |
| Minimum Ambient Temperature (F) | -40 °F |
| Maximum Ambient Temperature (C) | 80 °C |
| Maximum Ambient Temperature (F) | 175 °F |
| Power Consumption | 16 W |
| Relative Humidity (RH) [%] [Max] | 100 % |
| Relative Humidity (RH) [%] [Min] | 0 % |
| Width | 3.00 |
| Height | 3.00 |
| Length | 6.00 |
| Depth | 5 |
