PIC Gauges 100 Series Utility Gauges

100 SERIES UTILITY GAUGE

Utility gauge for commercial and industrial markets.

Dial1" (25 mm)
1 ½" (40 mm)
2" (50 mm)
2 ½" (63 mm)
3 ½" (88 mm)
4 ½" (114 mm)

CaseBlack Steel
Stainless Steel
Chrome Plated Steel

Wetted PartsBrass Internals

BezelChrome Plated Steel, Fixed

Lens TypeGlass Lens
Plastic Lens

PointerBlack Aluminum

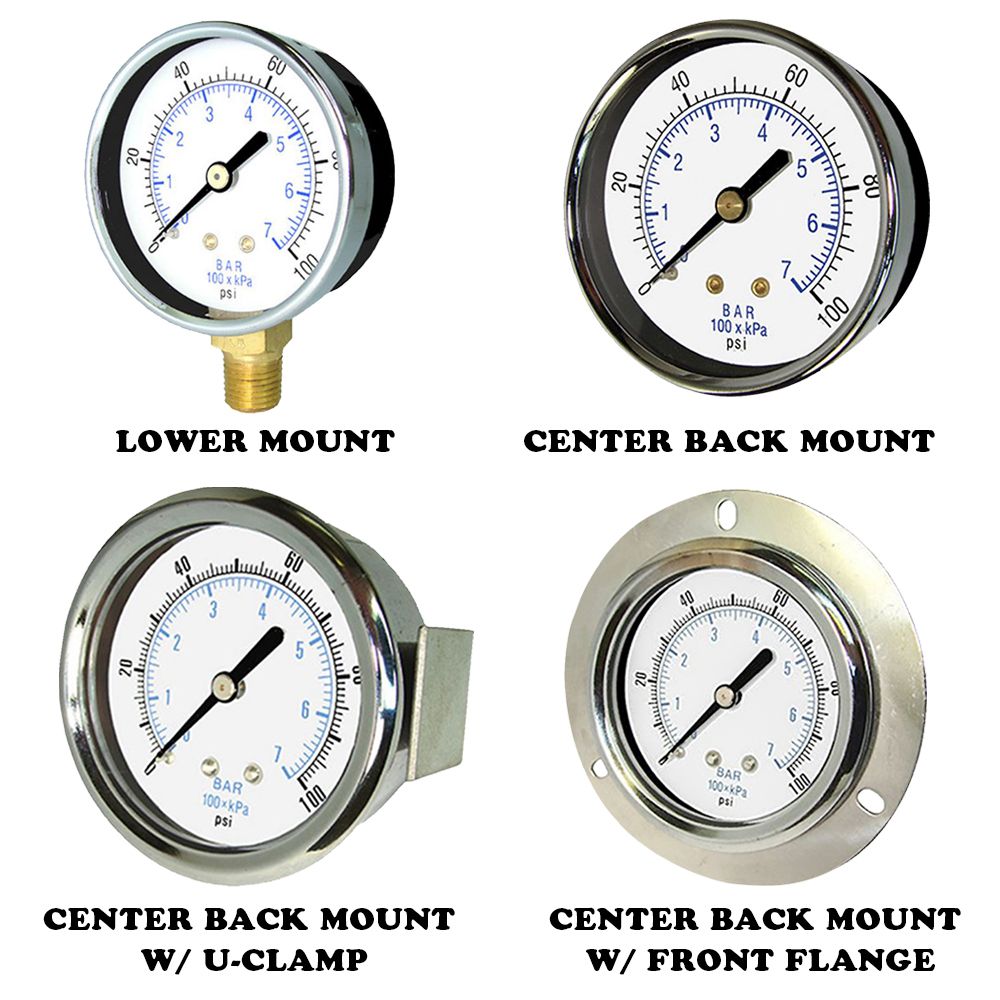

MountLower Mount
Center Back Mount
Center Back Connection Mount with U-clamp
Center Back Mount with Front Flange
Left Side Mount
Right Side Mount

Connection1/4" NPT
1/8" NPT

ScaleStandard: psi/BAR (x 100 = kPa)

Pressure Range0-15 psi
0-30 psi
0-60 psi
0-100 psi
0-160 psi
0-200 psi
0-300 psi
0-400 psi
0-500 psi
0-600 psi
0-800 psi
0-1000 psi
0-1500 psi
0-2000 psi
0-3000 psi
0-4000 psi
0-5000 psi
0-6000 psi
30/0” Hg Vac
30” Hg Vac/0/100 psi
30” Hg Vac/0/15 psi
30” Hg Vac/0/150 psi
30” Hg Vac/0/30 psi
30” Hg Vac/0/300 psi
30” Hg Vac/0/60 psi

Accuracy2 ½" (63 mm)
4" (100 mm)

Ambient Temperature-50° F to 160° F

Fill FluidDry (Non-Fillable)

Available OptionsCertificate of Accuracy, NIST traceable
