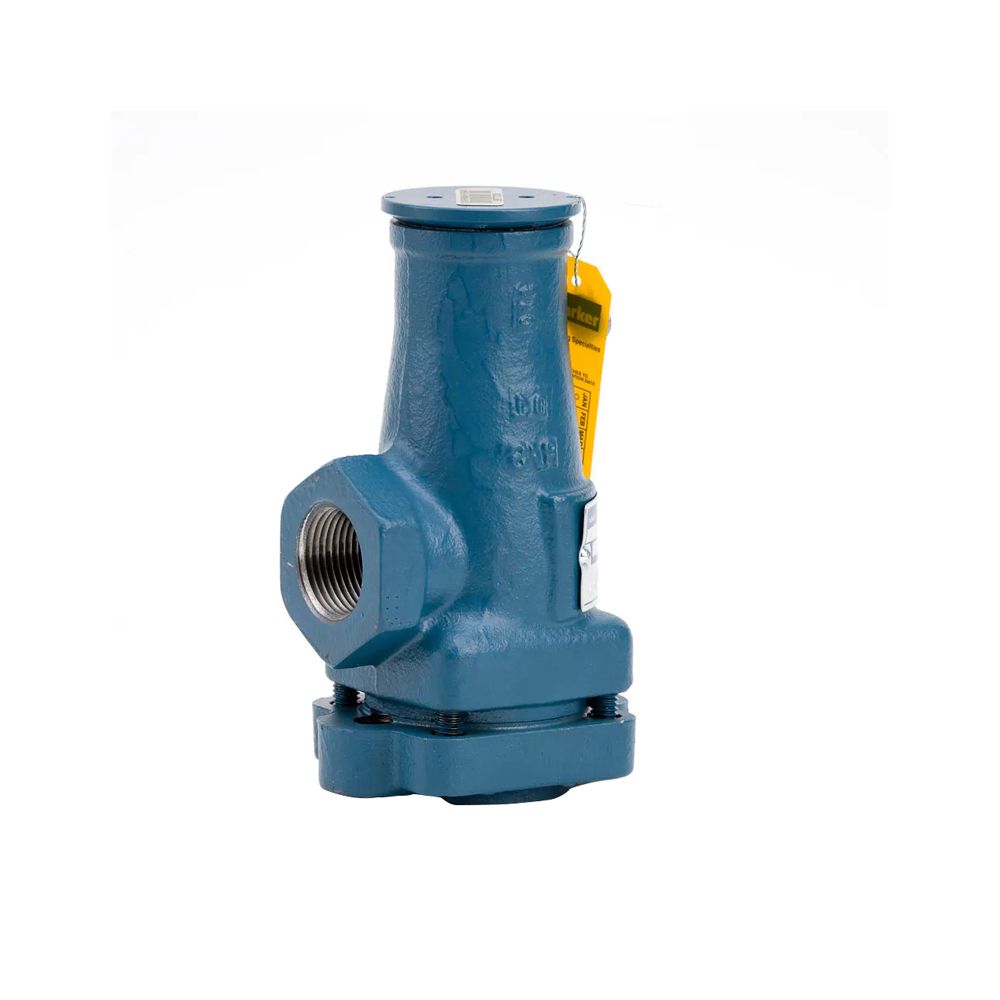

101116 Parker RS H5 Pressure Relief Valve 1-1/4" x 2" 150 psi

The Type H High Capacity Safety Relief Valves are designed and constructed to meet the requirements of ASME Boiler and Pressure Vessel Code and ANSI/ASHRAE 15-78 Code requirements and bear the ASME Code Symbol (UV) indicating compliance with these codes. Employing proven principles of design, these Safety Relief Valves are highly reliable and dependable. Precision machined moving parts of stainless steel, a PTFE disc, and a cadmium plated spring prevent sticking due to corrosion or cold welding, to assure valve opening at the set pressure long after installation. They are not suitable for corrosive ambient atmospheres such as chlorine, etc. The two-bolt flanged bottom inlet affords simple removal and replacement.

Product Features:

• Suitable for Use with Ammonia and Halocarbon refrigerants in non-corrosive environments
• High Capacity
• Excellent Repeatability
• All Stainless Steel Internal Parts
• Unaffected by Vibration
• Drain Plug Standard
• PTFE Seat

Application:

• Compressor Packages
• Accumulator Vessels
• Receiver Vessels
• Anywhere overpressure protection is required
