SKU
Model 1.5
Brand:

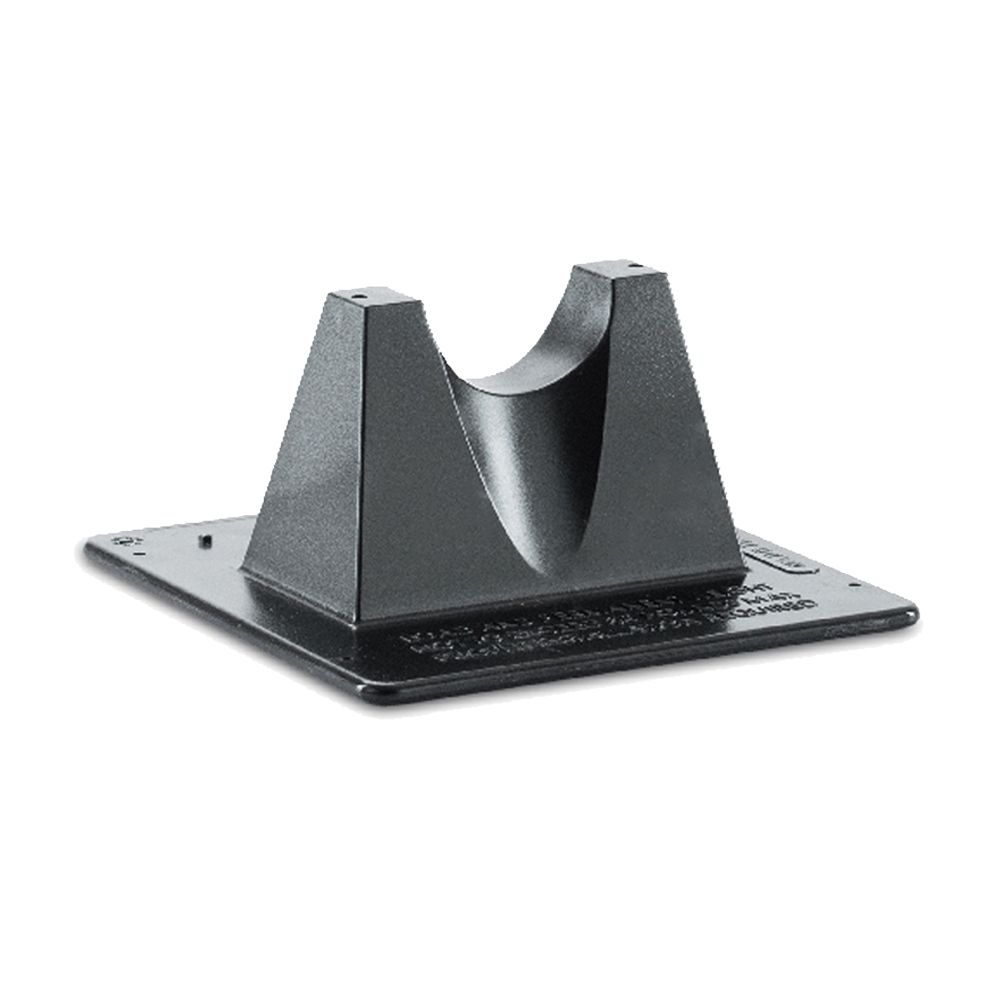

Miro Model 1.5 Pillow Block Pipe Supports - 1.5" ID/1.9" OD Pipes
Miro Industries Model 1.5 pillow block pipe supports are designed for electrical conduit, gas lines, solar lines, and small mechanical piping that is close to the roof. The maximum outside diameter of pipe which can be cradled in the Model 1.5 support is 1.9".
List Price
$595.98
List Price
$595.98
As low as
$10.97
Details
Miro Industries Model 1.5 is a pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping.
Pipes rest in a 'U' shaped cradle situated in a polycarbonate resin seat. Each Model 1.5 stand will accommodate up to 1.5" inside diameter pipes.
The maximum outside diameter of pipe which can be cradled in the Model 1.5 support is 1.9".
Features
- Support is optimized to carry up to a 11 2" pipe.
- Maximum pipe OD for the support is 1.9".
- Pipe clearance is 2"
- Maximum load is 72 lbs. based on 3.0 psi to the roof deck. Even load required.
63 per case, 22 lbs. per case, (DW= 14 lbs.) - Recommended spacing is not to exceed 7' centers depending upon the load. Make certain each pipe support is properly elevated to evenly distribute weight at all pipe support locations.
- Base Material: Polycarbonate
- 20 Year Warranty
More Information
| Weight | 2.000000 |
|---|---|
| Condition | New |
| Manufacturer | MIRO Industries |
| Size | The deck base is 6" square, the stacking platform is 2" high, the top of the "U" cradle is 3" high, and the maximum inside width of the cradle is 1.95" |
| Maximum Pipe Size | 1-1/2" inside diameter and 1-9/10" outside diameter. |
| Maximum Pipe Clearance | Pipes supported one pipestand high will have a clearance of 2" over the roof |
| Maximum Load Weight | Maximum load weight may not exceed 72 lbs. per pipestand |
| Spacing | Manufacturer's recommended spacing is not to exceed 10 feet centers depending upon the load. |
| Material | Polycarbonate |
