Miro 20-Base Strut-4 Strut Rooftop Pipe Support - 19" x 23" Deck Base

Name: Miro 20-Base Strut-4 Strut Rooftop Pipe Support - 19" x 23" Deck Base
Brand: MIRO Industries
SKU: 20-BS-4
Price: 141.51 USD
Availability: InStock

20" wide and 4" above roof.

List Price $452.56 List Price $452.56 As low as $141.51

Quantity

Qty:

Save for Later

Ask us a question about this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

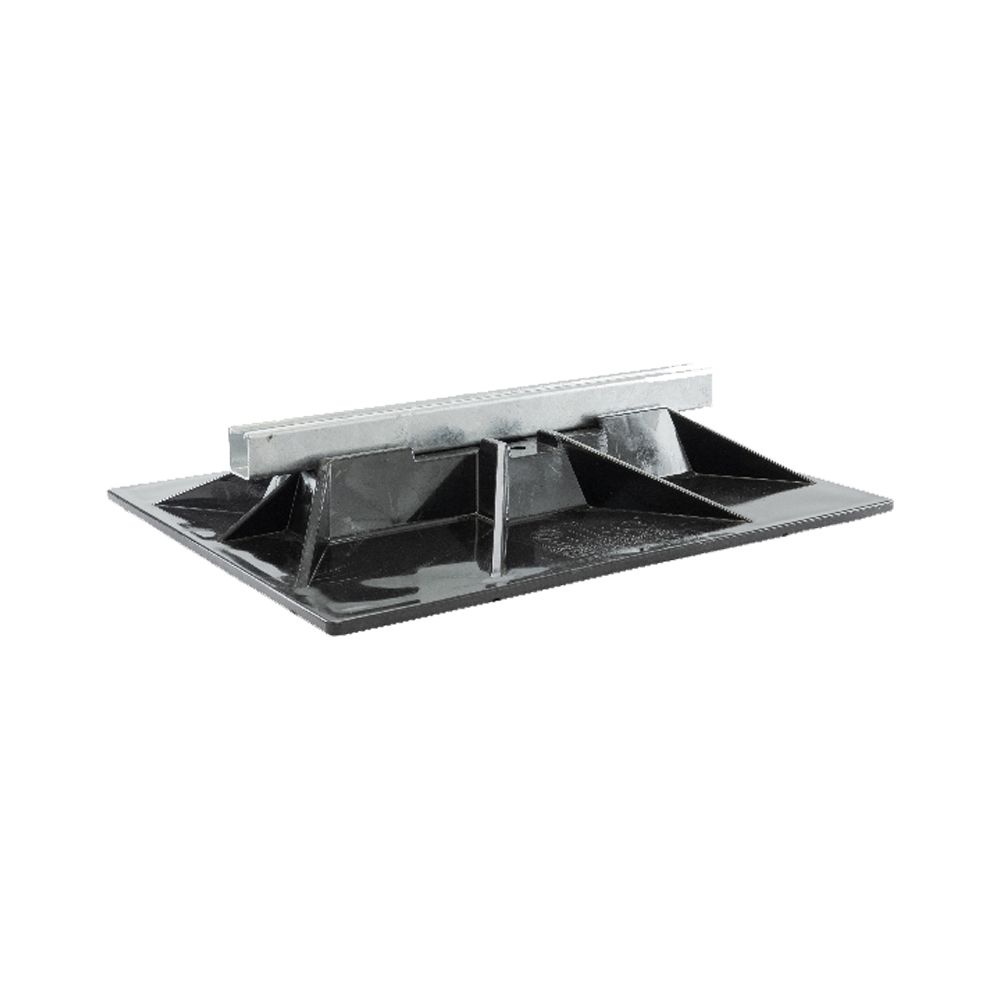

A pipestand with a strut and clamp pipe support system used for supporting roof mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Pipes rest on a 20" length of channel which is mounted on the base. The pipes can then be fastened by using typical clamps locked to the strut. The pipe support base is made of polycarbonate resin and the strut is made of hot-dip galvanized steel.

More Information

More Information
Weight	13.000000
Condition	New
Brand	MIRO Industries
Base Material	Polycarbonate
Size	The deck base is 19" by 23" and has a maximum channel length of 20".
Maximum Pipe Clearance	Fixed support height of 4.125".
Maximum Load Weight	Maximum load weight may not exceed 960 lbs. per pipestand.
Spacing	Manufacturer's recommended spacing is not to exceed 10 foot centers depending upon the load.
