MCBV (Motor Controlled Ball Valves)
List Price
$8,760.00
List Price
$8,760.00
As low as
$550.00
Details

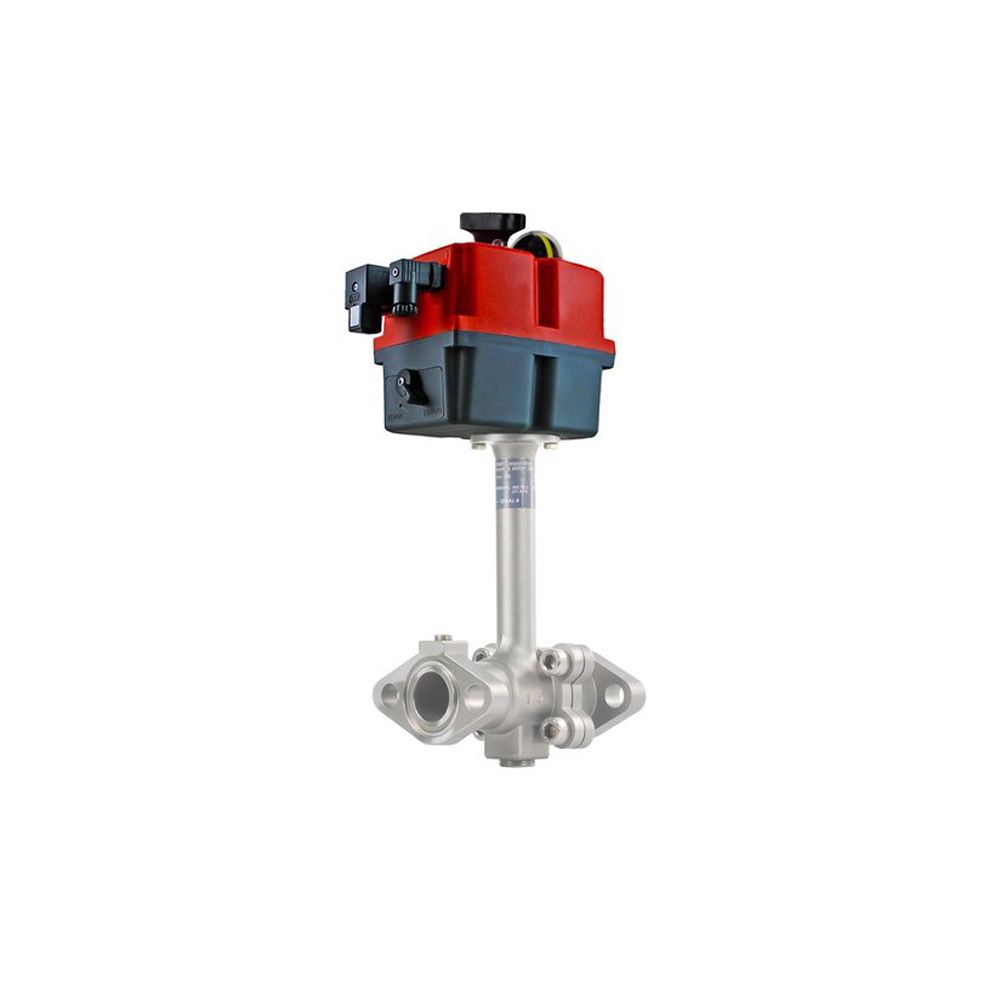

The HANTEMP Motorized Ball Valve MCBV includes an electronic actuator for modulation or open/close control of the valve. All electronic actuators include integrated manual override Handle/Indicator for opening/closing. This patented design of ball valves features stainless steel construction, very low pressure drop, gradual opening and closing, integral reverse-flow check, standard F05 actuator mount, and an extended valve neck for simple insulation. Also available as the manual BV ball valve with the same valve bodies and internals, equipped with a manual proportional handle.
FEATURES
- Precise modulation and very low pressure drop
- Extended valve neck for total insulation
- Characterized V-Ports available for modulation
- Constructed of stainless steel
- 800 psig (55 bar) SWP; -70°F to +240°F (-57°C to +115°C) safe operating temperature
- ISO F05 Actuator Mounting Standard
- Available for flanged or weld inline installation
- Lock-out/tag-out option
- Conforms to IIAR Valve Standard
"Ball valves are increasingly popular for industrial refrigeration due to smooth operation and minimal pressure drop."
More Information
| Weight | 14.000000 |
|---|---|
| Condition | New |
| Manufacturer | Hantemp |
