IND111-4 IRP 4 Liquid Filled Stainless Ammonia Gauge -30 To 300 # 1/4 Bottom Connection
IND111-4 IRP 4 Liquid Filled Stainless Ammonia Gauge -30 To 300 # 1/4 Bottom Connection
Details

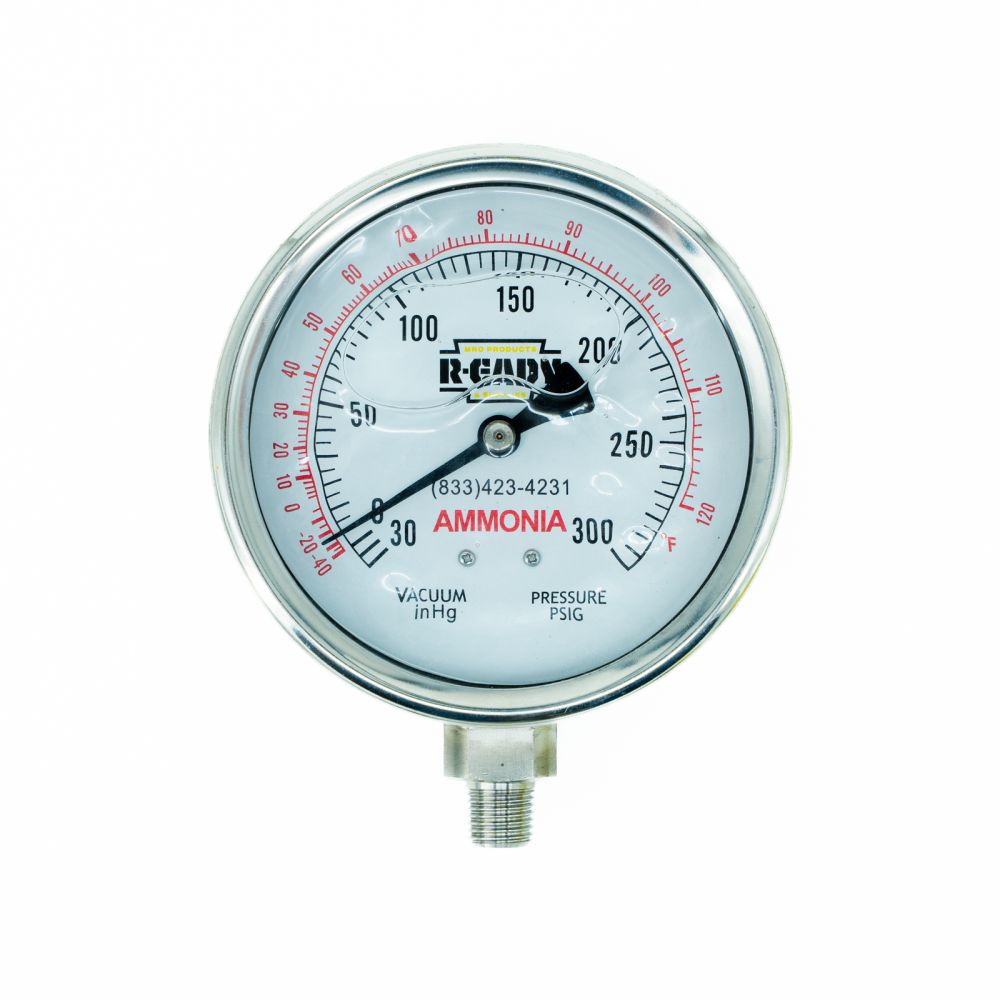

4" liquid-filled, stainless ammonia gauge, -30 to 300 psi, with 1/4" MPT bottom connection. For ammonia refrigeration applications, ammonia gauges measure ammonia refrigerant pressure and corresponding temperature.
Specifications
- Dial: 4" (100 mm)
- Case: Stainless Steel
- Wetted Parts: Stainless Steel
- Bezel: Stainless Steel, Removeable
- Lens: Plastic
- Pointer: Black Aluminum, Adjustable
- Mount: Lower mount
- Connection: 1/4" NPT
- Scale: Standard: psi/° F temperature equivalent
- Pressure range: -30 to 300 psi
- Accuracy: 2-1-2% of span ASME B40.1 Grade A
- Ambient Temperature: Dry = -40° F to 180° F
More Information
More Information
Weight |
2.000000 |
Condition |
New |
Brand |
IRP |
Ambient Temperature |
Dry = -40° F to 180° F |
Body Material |
Stainless Steel |
Lens |
Plastic |
Connection Size |
1/4" |
Mounting |
Lower mount |
Pressure Range |
-30 to 300 psi |
Width |
5 |
Height |
3 |
Length |
7 |
Depth |
6.0000 |
