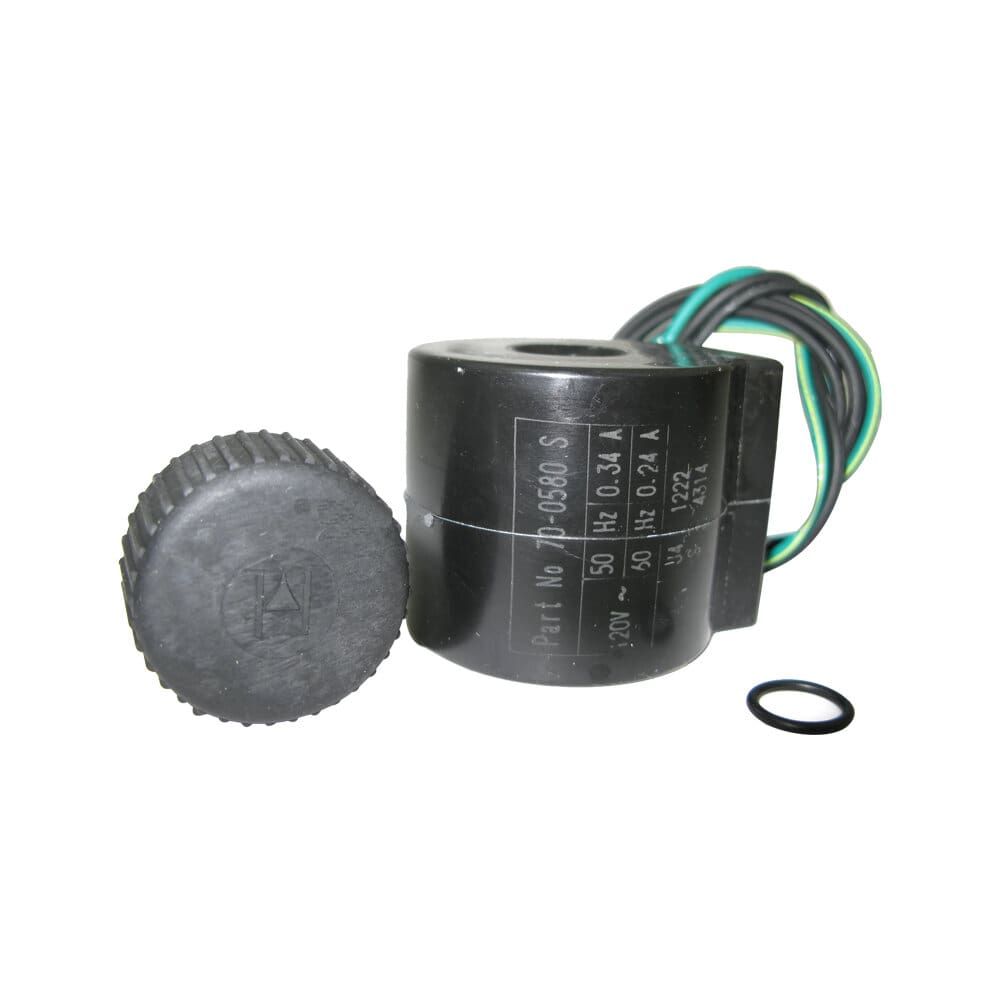

70-1085 Hansen 115 V Encapsulated Coil Kit

Hansen 70-1085 Encapsulated Coil Kit

All Hansen solenoid valves utilize a one-size encapsulated, watertight solenoid valve coil. These solenoid coils are strong and efficient, requiring only 16 watts of power. All common voltages and frequencies are available. Solenoid valve coils are designed to operate from 85% to 110% of rated voltage. Pilot light assemblies are also available. The pilot light assemblies require no additional wiring.

The standard solenoid coil connection is a ½” female straight pipe fitting (NPSM) for conduit, with two 18” long, insulated 18 AWG wire leads plus ground wire. Solenoid valve coils with a DIN plug or a Quick Disconnect plug are available where codes permit.

All solenoid coils meet NEMA 3R (IP32) (rainproof) and NEMA 4 (splashproof) requirements. This sealed construction can withstand direct contact with splashing or hose-directed water, wind-blown dust or rain, and remain undamaged by the formation of ice.

Key Features

• One solenoid valve coil fits all valve sizes
• Low wattage
• Encapsulated, watertight design
• Operates on standard voltages
• Combination 50/60Hz coil
• Can be used with European/Danish coils using
• Coil Adapter Kit 70-1104
• Easily installed, no tools required
• Long life wireless pilot light optional
