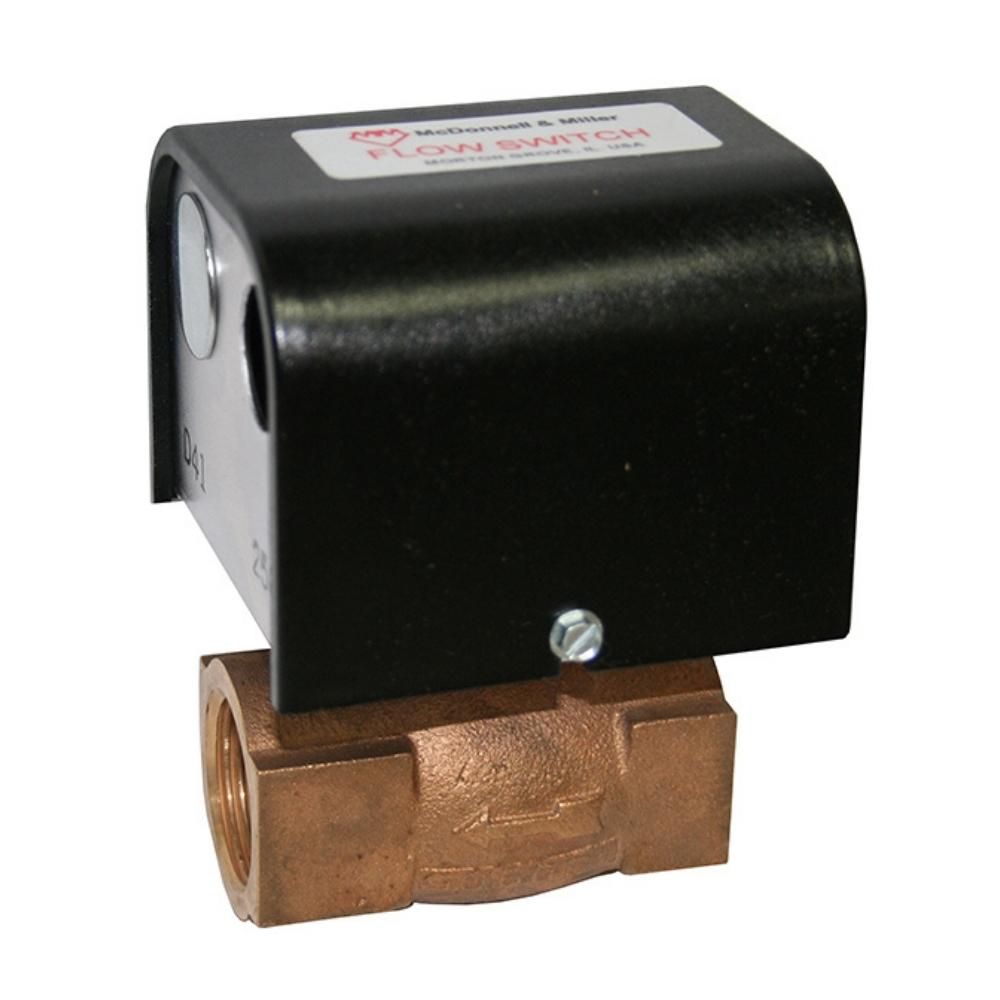

114793 McDonnell & Miller FS5-DS-1" Flow Switch 1" NPT

Flow Switches – Liquid

Series FS5
General Purpose Liquid Flow Switches

• For general purpose applications requiring low flow rate sensitivity
• In-line configuration eliminates need for a pipe tee
• Sizes available

  • 3/4" NPT
  • 1" NPT
• Materials of construction

  • Brass, carbon & EPDM elastomer (for water); Models FS5 & FS5-D
  • Stainless steel, carbon & Buna N (for water or water and petroleum base compounds)
    Models FS5-S & FS5-DS
• Single pole, double throw snap switch
• Sensitivity adjusting screw makes flow adjustment easy
• Optional feature
  • BSPT threads
• Minimum temperature (fluid or ambient) 32°F (0°C)
• Maximum temperature

  • 225°F (107°C) – Stainless Steel models
  • 250°F (121°C) – Brass
• Maximum operating pressure 150 psi (10.5 kg/cm2)
