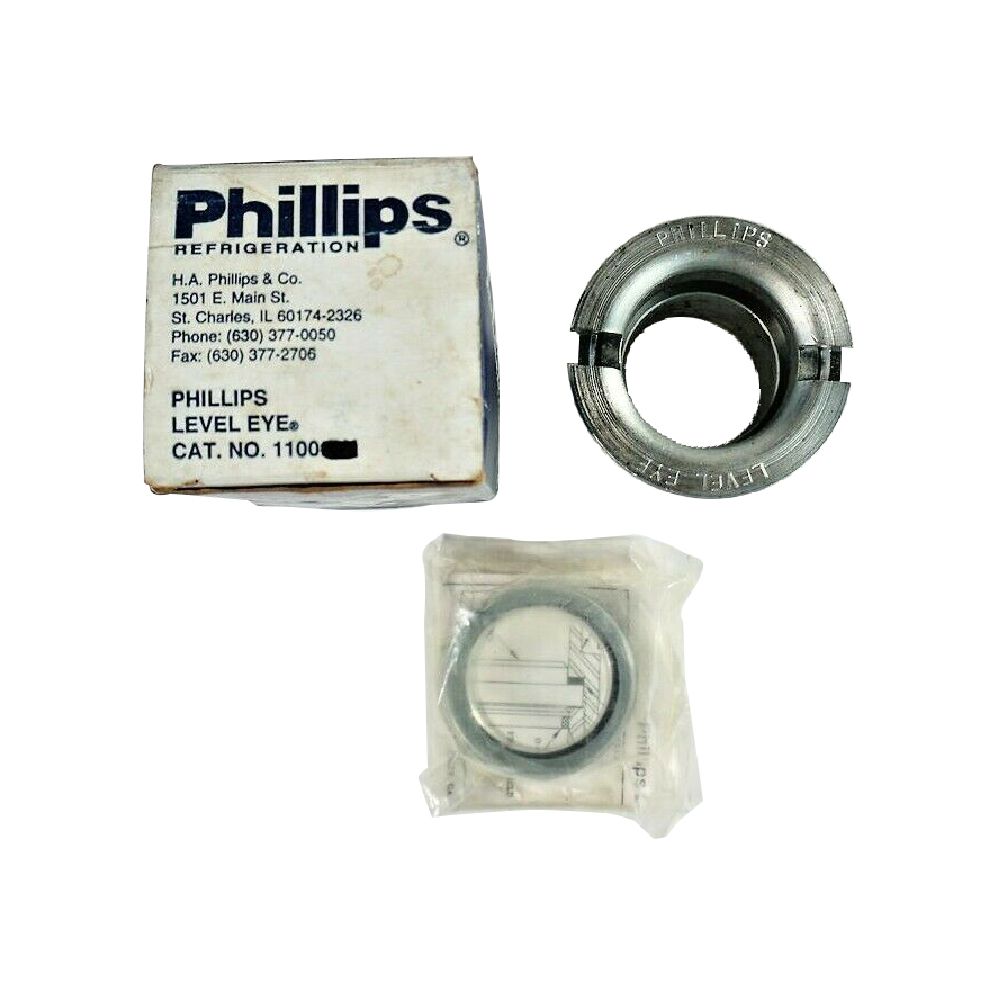

1100-series Phillips Level Eye Assembly

The Series 1100 Level Eye is machined from SA36 material, as specified in Section VIII, Division I of the ASME Boiler & Pressure Vessel Code. The housing may be welded directly into ASME Code vessels. The welding end is dimensioned to a nominal 1 1/2” IPS schedule 80 pipe. The weld neck or threaded neck is dimensioned to nominal 1 1/2” schedule 80 pipe. All retainers are annealed 416 stainless steel forgings. Type 304 stainless steel housings are also available in a 2” length.
The 1101 clear lens and 1101R reflex lens are both made of borosilicate glass. Both are used with a neoprene rubber gasket on the inside and a fiber buffer gasket on the outside (between the glass and the retainer). The maximum temperature differential for all glass is 477°F; the maximum temperature for the gaskets is 250°F. The maximum working pressure is 1000 PSI.
For applications below -20° /-29°C refer to figure UCS-66.01 of the ASME Code. Rupture of the glass in tests occurred in excess of 14,000 PSI. The Phillips Series 1100A and 1100 Level Eye is in compliance with the intent of the ASME Boiler & Pressure Vessel Code, Section VIII, Division I.

Features:

• Suitable for ASME Code Vessels
• 1000 PSI/69 bar Working Pressure Limit
• SA36 Steel Construction Standard
• Available in Stainless Steel
• Suitable for Low Temperature Applications (-60°F /-51°C)
• 1100A–Canadian Registered (All Provinces)–CRN0F0829.2C
